Data Mining Engine (DME)

Production K3s platform for corporate & municipal bond extraction

SDE Trainee | FactEntry Data Solutions (A SIX Company)

GitOps delivery
Redis queue workers
Server & cluster UI
API access portal

Enterprise extraction platform on K3s: FastAPI microservices, Redis-stream jobs, human-in-the-loop validation, and superuser cluster controls. Delivered via GitLab CI image builds, Helm chart promote, and Argo CD sync to stage.

View architecture & flow diagrams ↓

Core Technical Achievements

Process Scaling & GIL Bypass: To fully utilize an 80+ core Xeon server, I engineered the system to bypass Python's Global Interpreter Lock by spawning separate processes via `ProcessPoolExecutor`, processing 80+ ISINs simultaneously.
Role-Based CPU Tiering & Burst Throttling: Implemented job-level semaphores to cap batches allocating exact CPU fractions dynamically per user, including a dynamic priority engine that allows admin burst throttling when no normal users are active.
Microservices Architecture: Built heavily decoupled services using FastAPI, Python, PostgreSQL, and Redis across Corporate, Municipal, Validation, and Document Processing domains.
Redis Queue Extraction (default): Backend publishes ISIN jobs to Redis streams; corporate/municipal replicas consume in parallel for multi-node throughput. Optional Numaflow/NATS JetStream (`dme-jobs`) runs as cluster infrastructure alongside HTTP fallback paths.
GitOps delivery: GitLab CI builds immutable images (dme-*-commit-sha), promote jobs update docfin_ai_charts, Argo CD auto-syncs dme-stage on K3s.
Security & Threat Modeling: Conducted comprehensive SecureCoder threat modeling to map trust boundaries across extraction engines, SMB mounts, and the frontend API, ensuring enterprise-grade security.
Domain-Restricted Access: Custom secure signup flows validating against `@factentry.com` domains natively in Zod and FastAPI.

Architecture & system flows

End-to-end view of DME on K3s: how users and APIs reach the platform, how jobs are dispatched to workers, how GitOps delivers images, and how operators manage the fleet. Click any diagram to zoom.

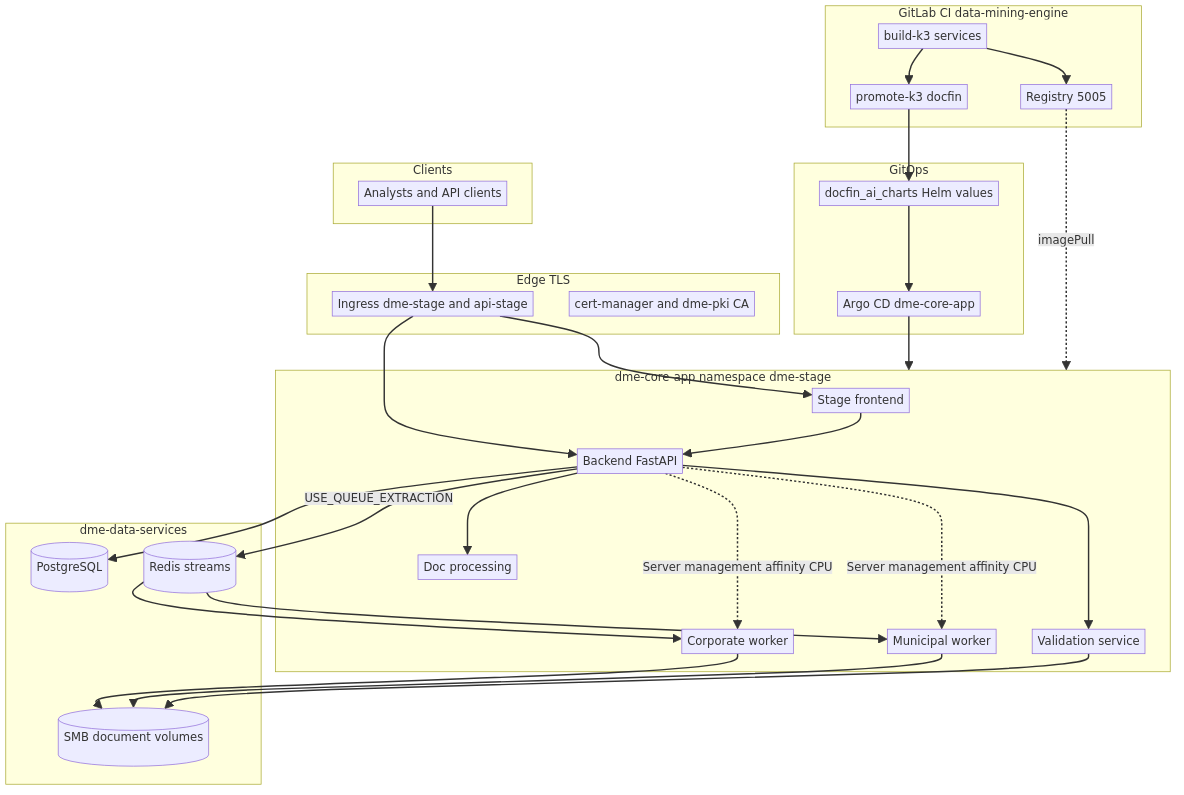

Full stack — clients, ingress, core app, data plane, GitLab CI, Argo CD — **Full stack (runtime + GitOps)** Edge TLS, `dme-core-app`, PostgreSQL & Redis, SMB volumes, CI build/promote, Argo sync. Server management patches worker placement at runtime.

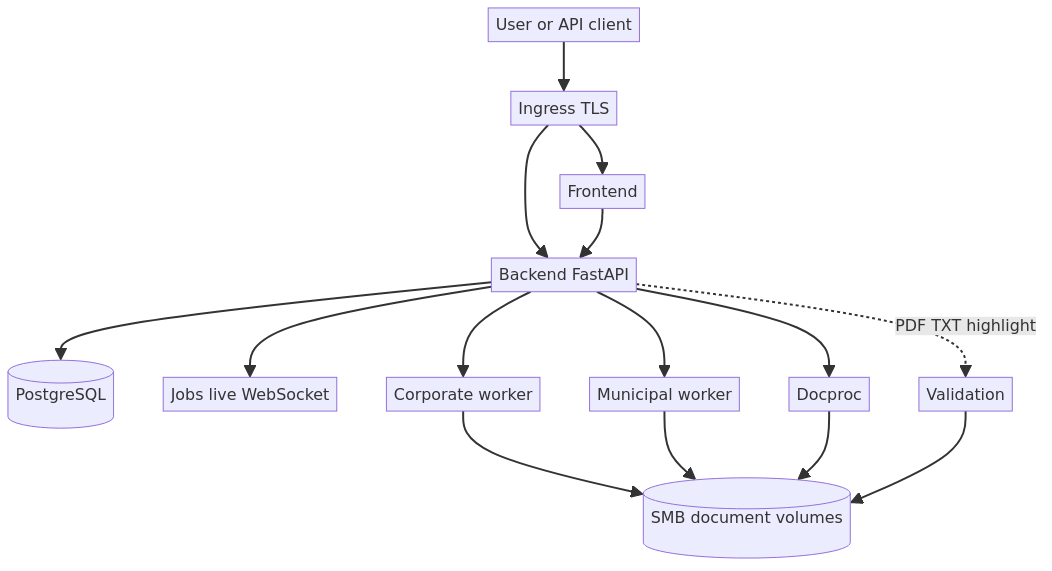

Browser to backend workers validation and WebSocket — **Request path** Ingress → frontend/backend → PostgreSQL, live job WebSocket, corporate/muni/docproc. Validation is a separate highlight workflow.

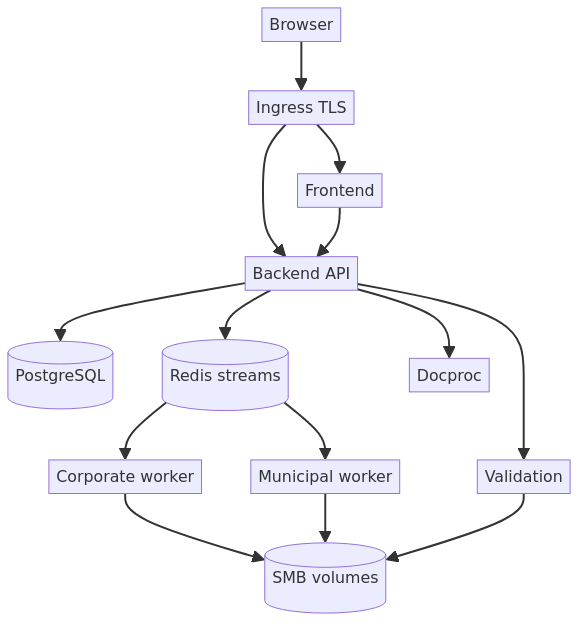

Queue mode runtime — Redis to workers and SMB — **Runtime (queue mode)** Backend publishes to Redis streams; corporate and municipal consumers read bond data from SMB mounts.

GitLab CI promote charts Argo CD — **GitOps / CI/CD** Push or New pipeline → `build-k3-*` → registry → promote `docfin_ai_charts` → Argo CD → `dme-stage`.

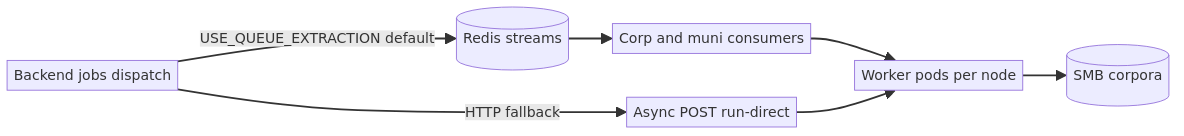

Job dispatch Redis queue vs HTTP fallback — **Job dispatch** Default: `USE_QUEUE_EXTRACTION` and Redis streams. Fallback: async HTTP `run-direct` to worker pods.

Inside worker — stream to extractors to callback — **Inside a worker pod** Redis message → `api_runner` → DataMining orchestrator → field extractors → status/callback.

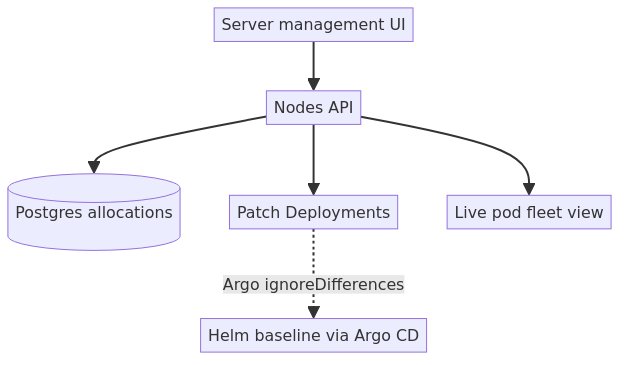

Server management UI to Postgres and Kubernetes — **Cluster operations** `/server-potential` → nodes API → Postgres allocations → Deployment patches (Argo `ignoreDifferences` on replicas/affinity).

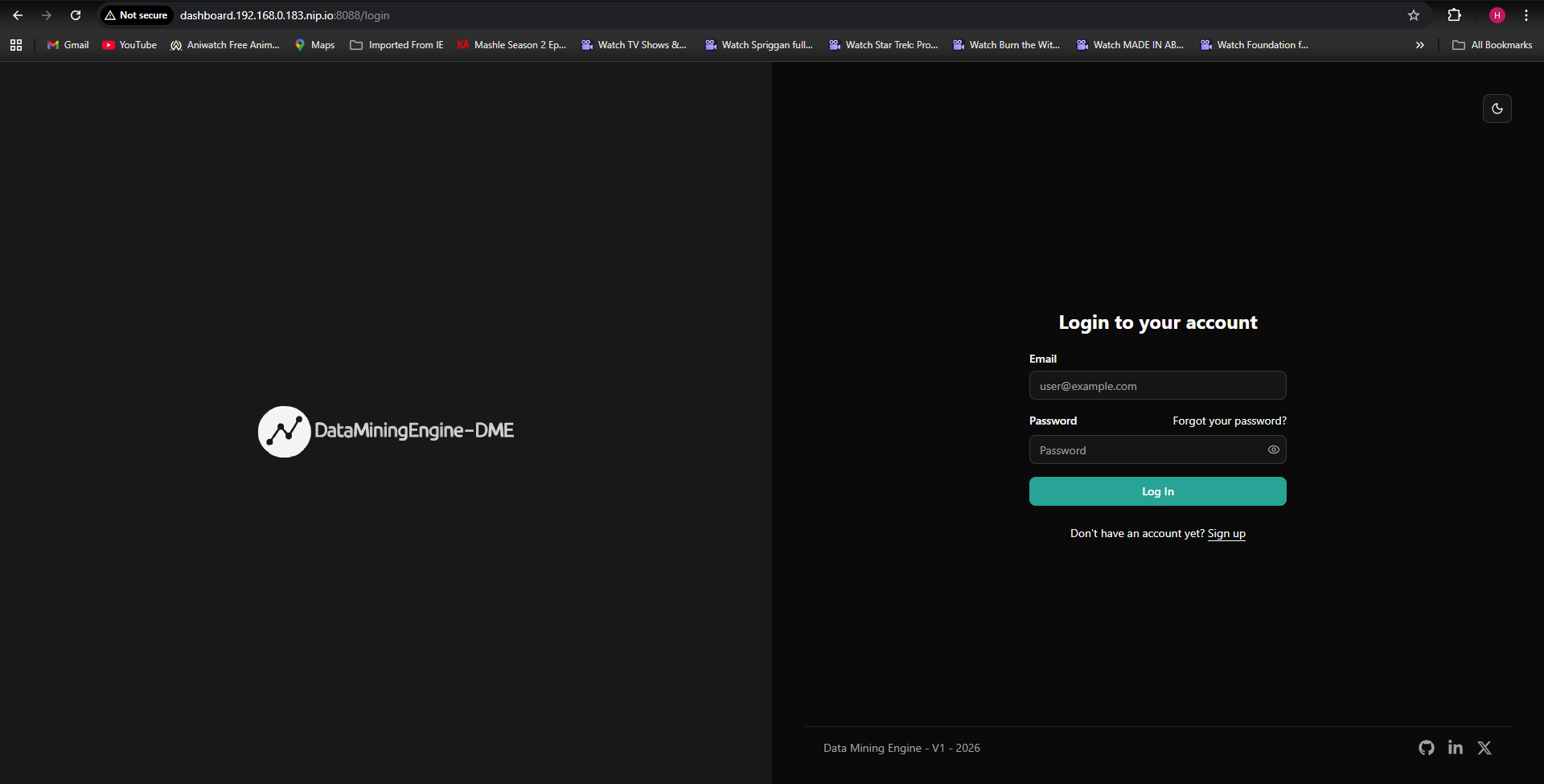

Secure Domain-Restricted Login

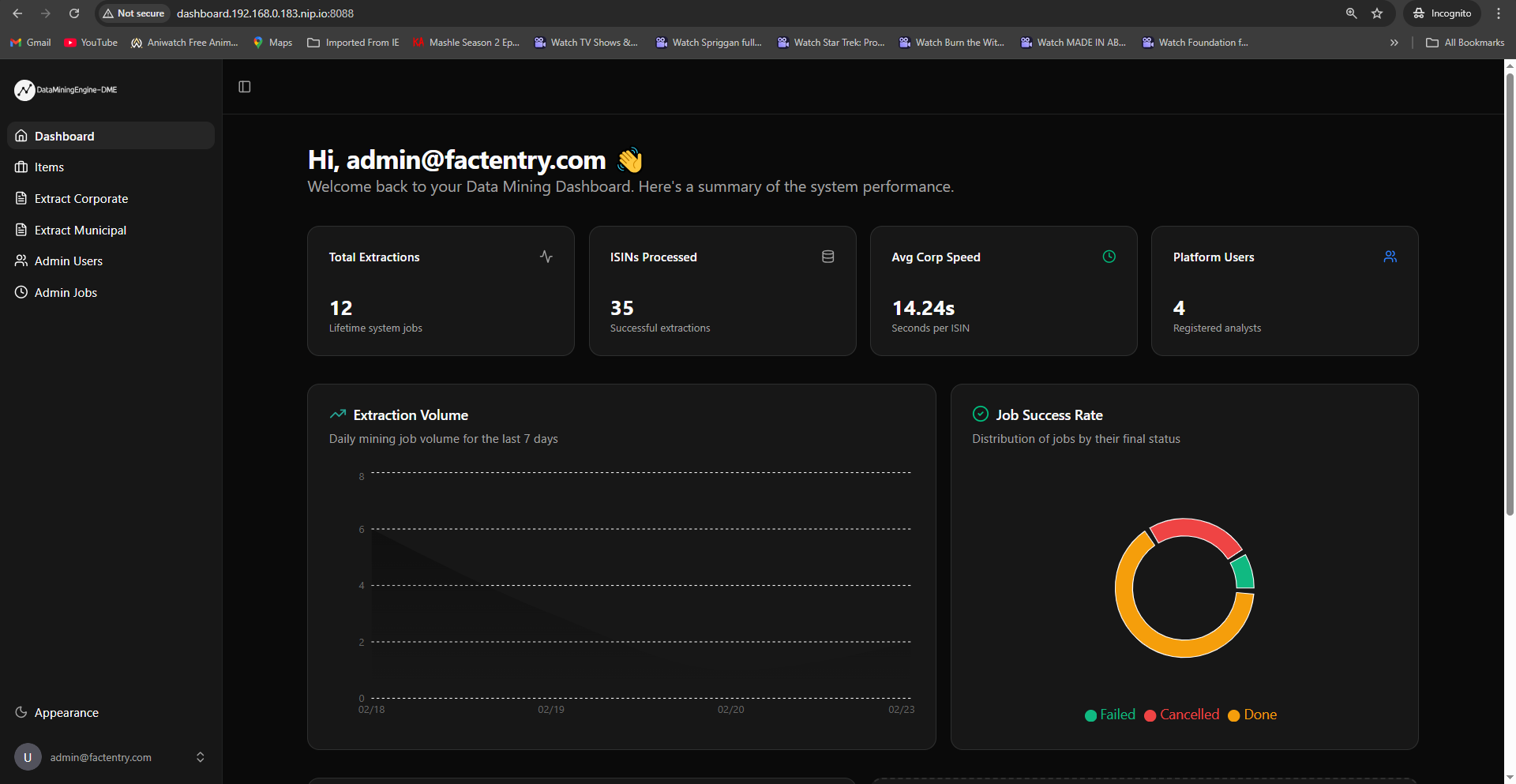

Role-Aware Main Dashboard

Live Backend CPU & Queue Telemetry

GitLab CI — build → promote → deploy (K3 stage)

Data Extraction Workflows

Support for asynchronous Corporate and Municipal bond data extraction. Jobs track progress dynamically with persistent runtime backups securely routed to the internal File Manager.

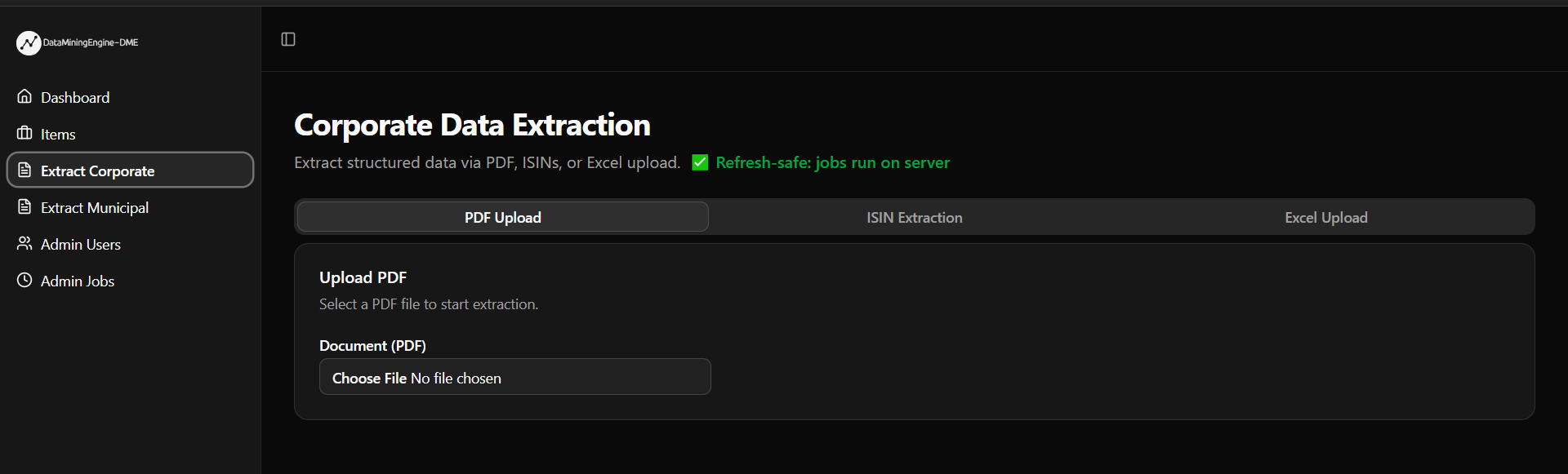

Corporate Bond Extraction Queue

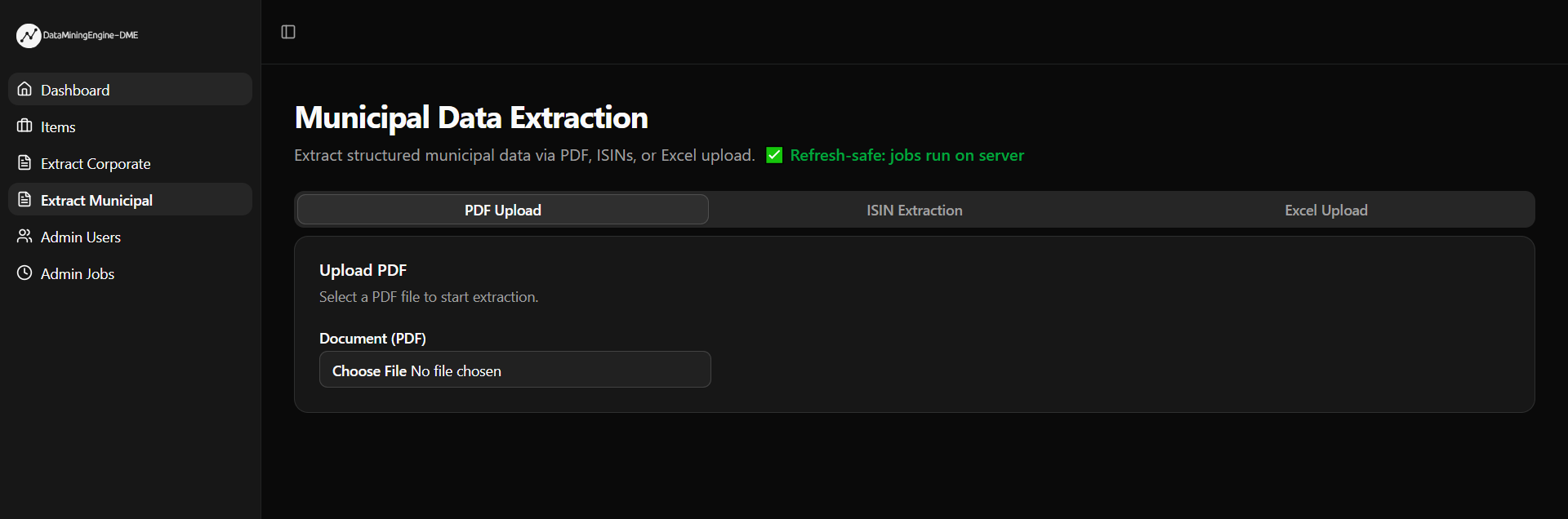

Municipal Bond Extraction Queue

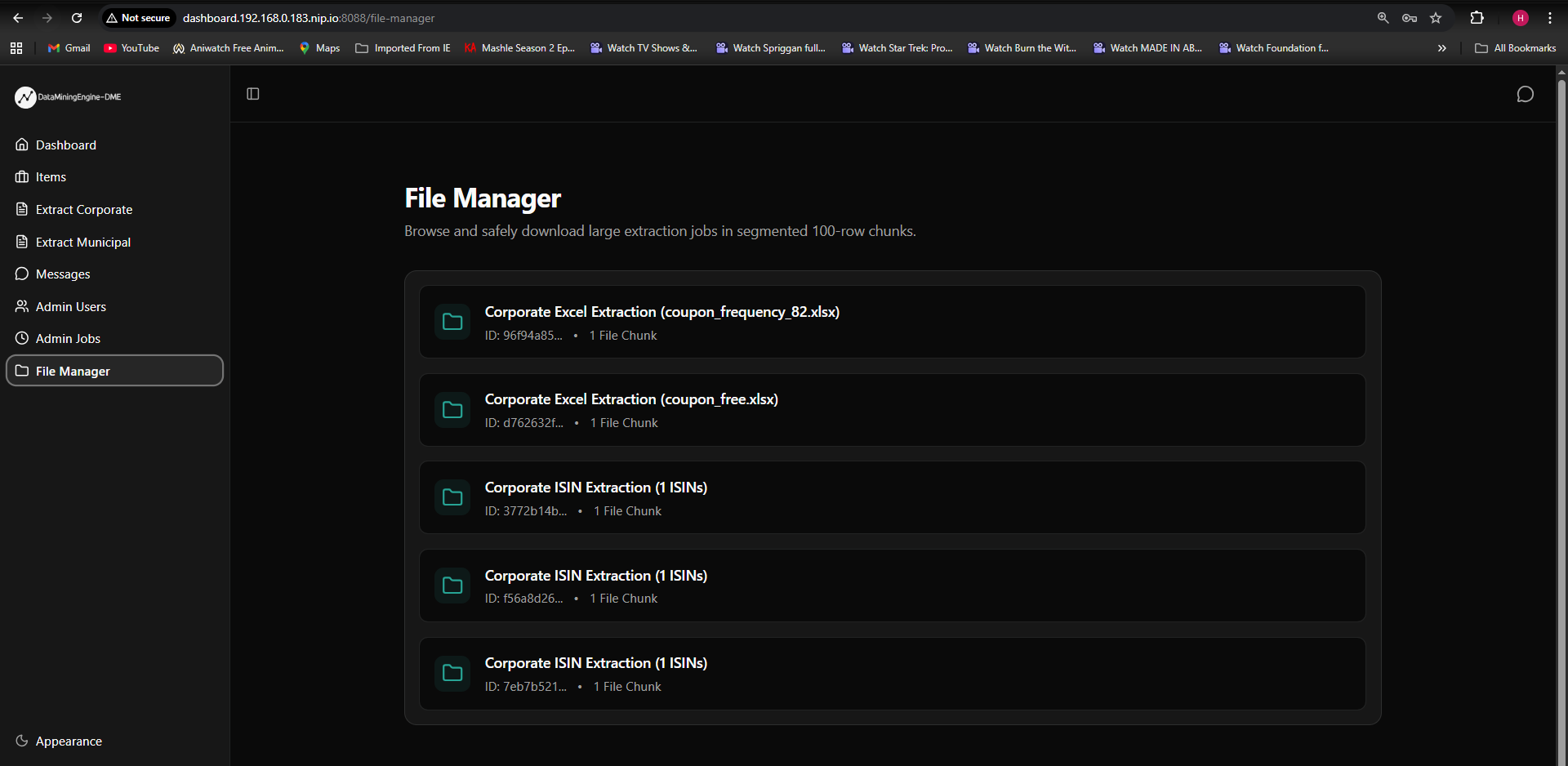

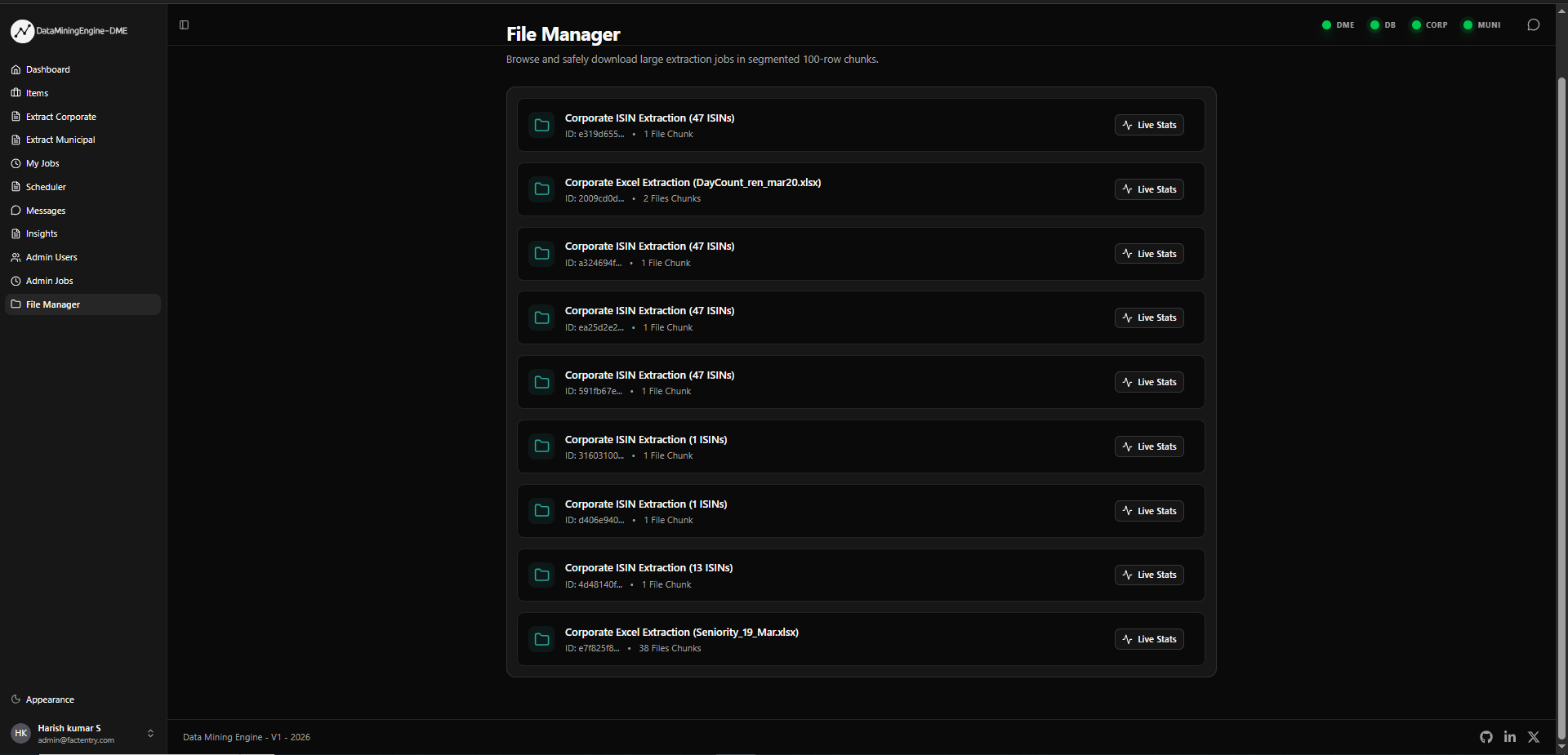

Runtime Recovery File Manager

Interactive Validation (Human-in-the-Loop)

A highly optimized validation UI with strict dual-pane scroll isolation, ranked PDF match navigation, and interactive text highlighting directly over native PDFs loaded from SMB mounts.

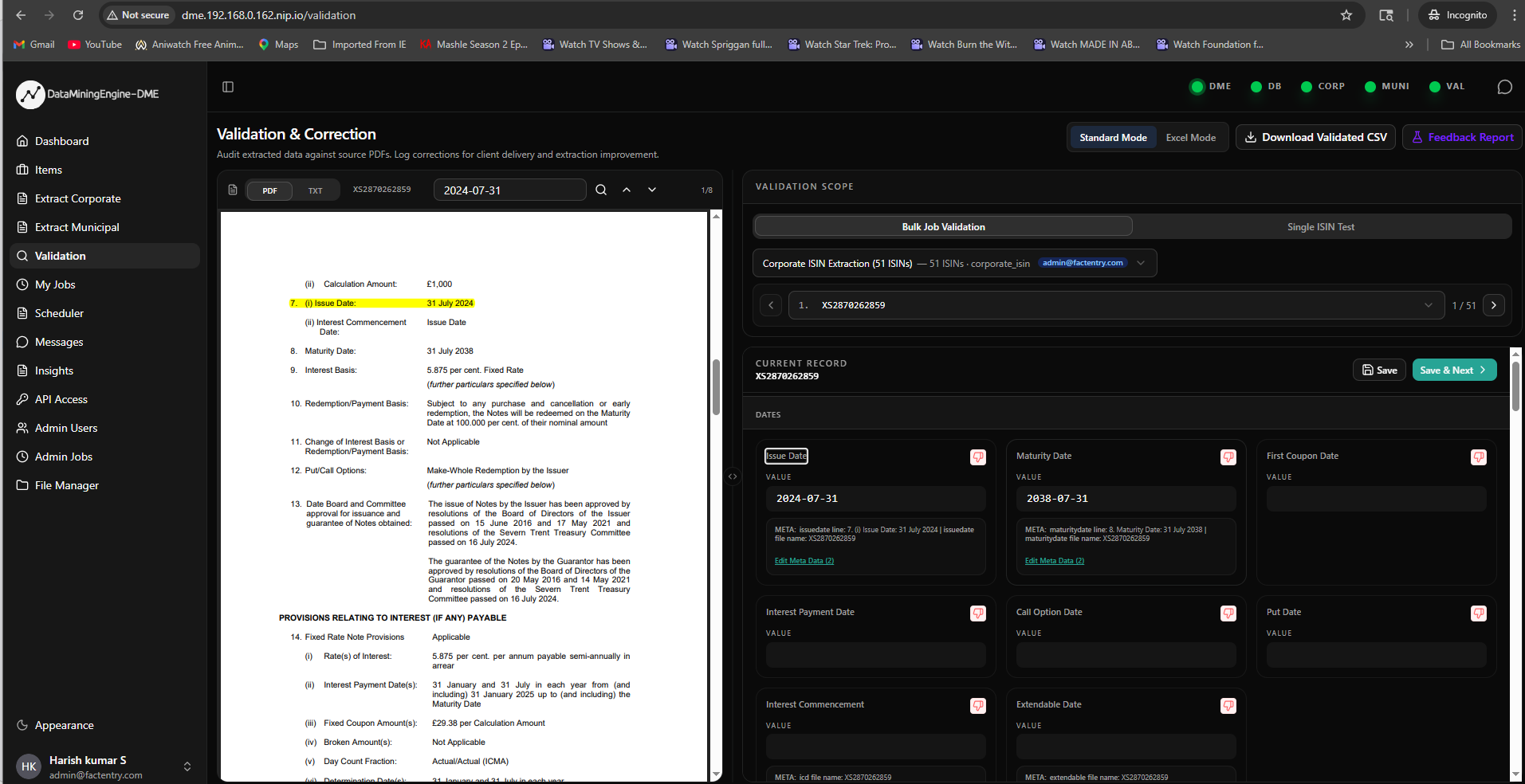

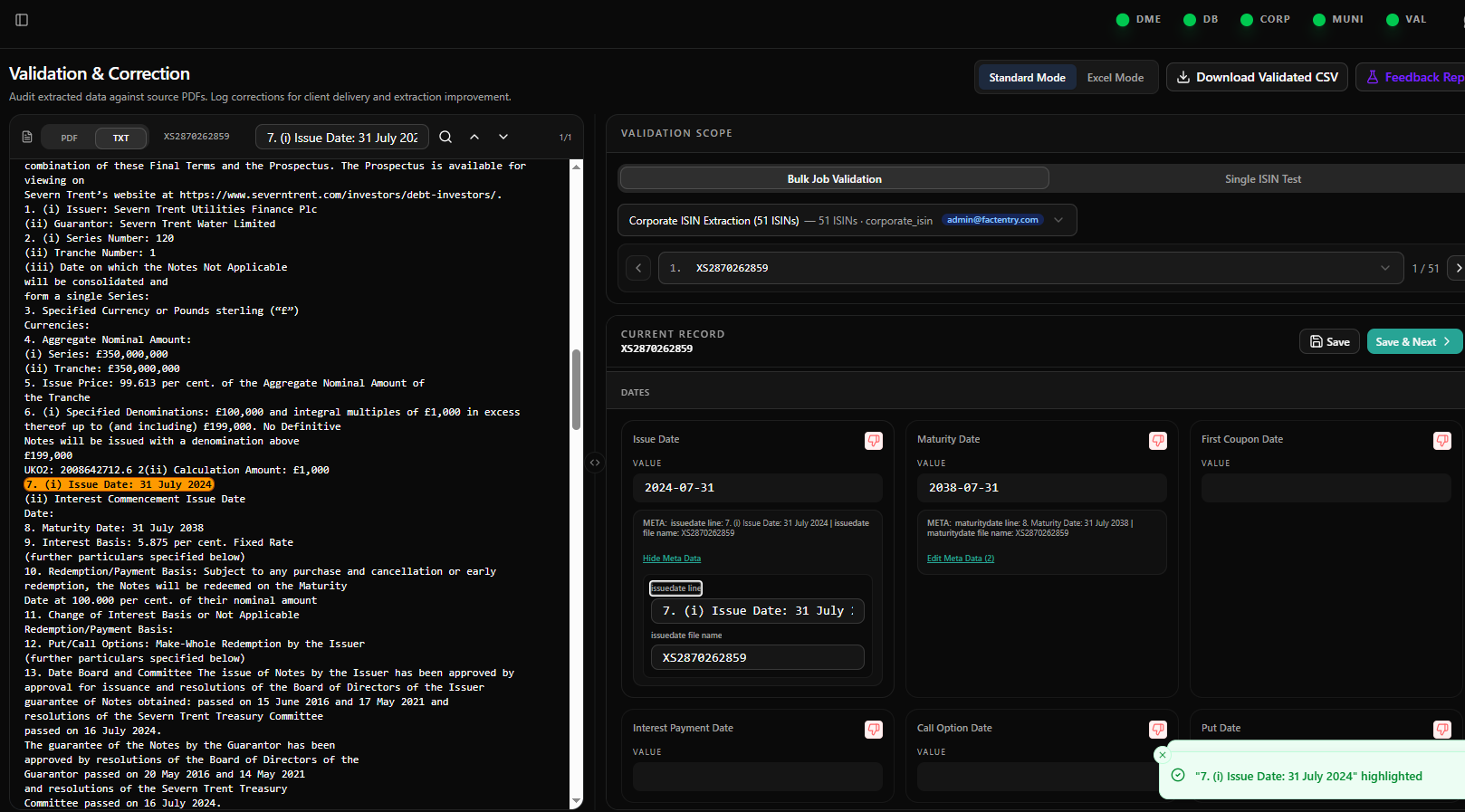

Interactive PDF/TXT Highlighting Workspace

Ranked Match Navigation & Quick Corrections

LLM Text Parser & Insights

Integrated advanced text parsing for unstructured documents, offering visual analytics, language distribution stats, and structured insights using selectable local LLMs (via Ollama).

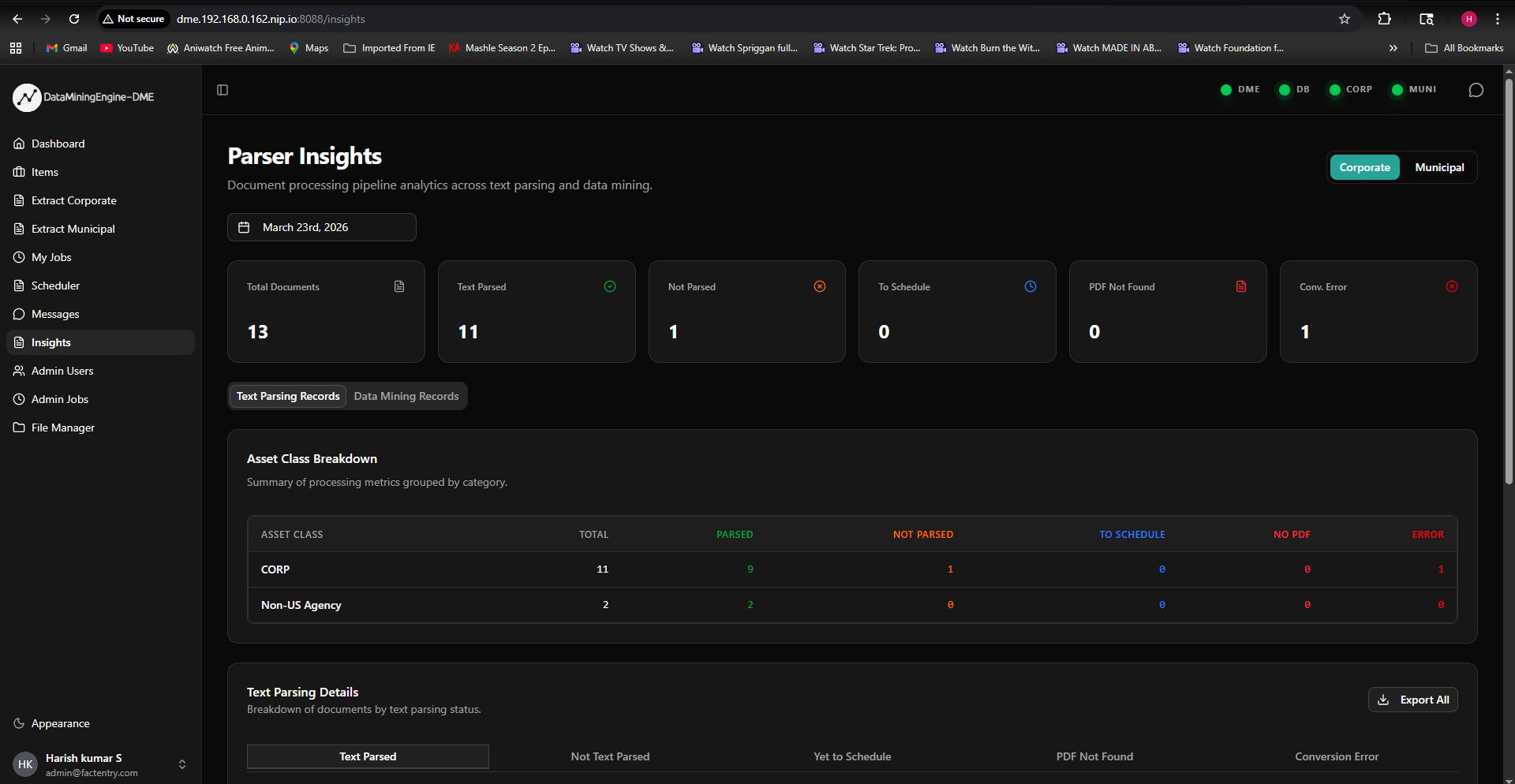

Parser Setup & Extractor Selection

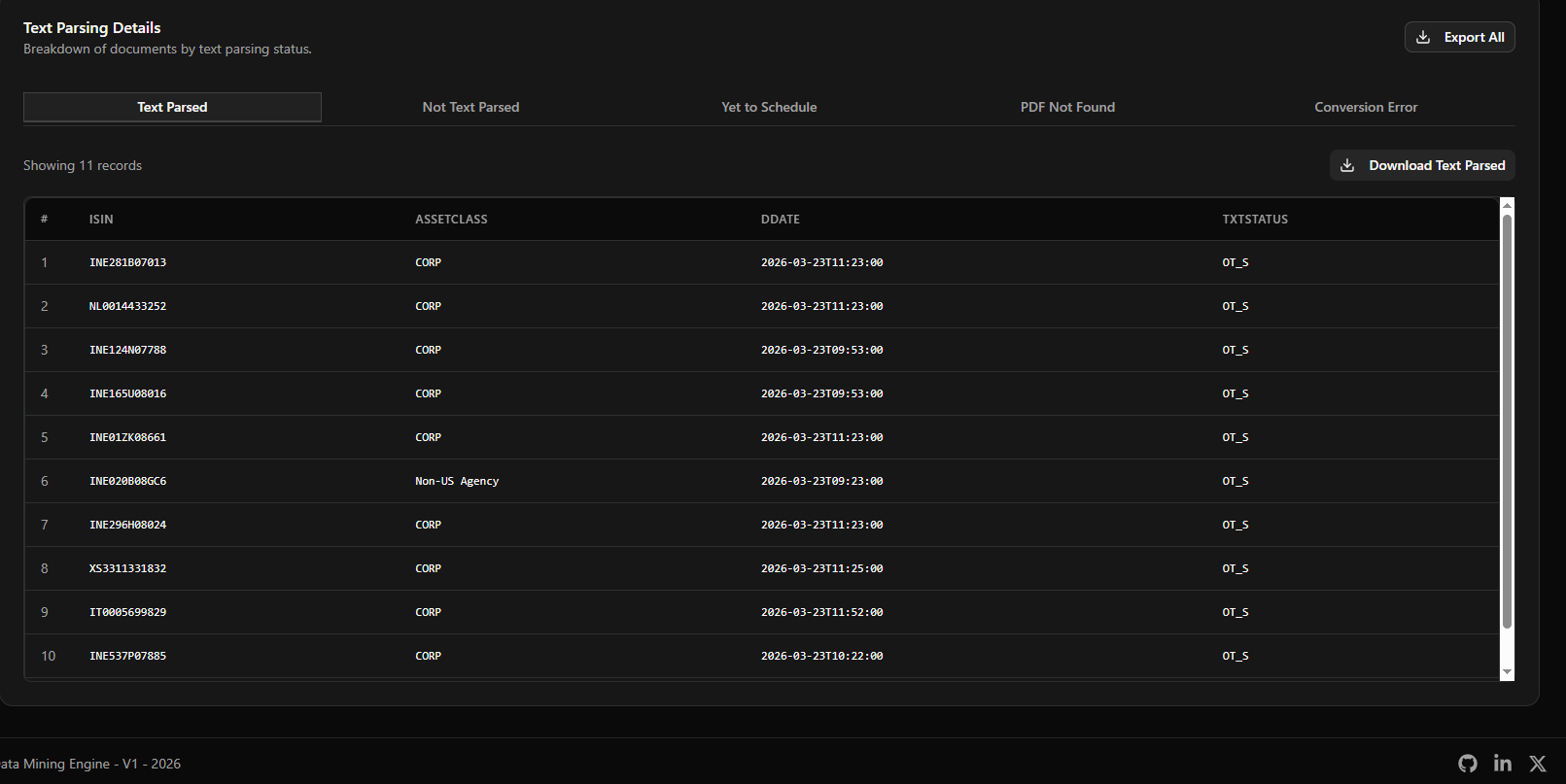

Language Distribution & Data Insights

Communication Live Workspace

A real-time WebSocket hub highlighting live extraction stages, system chatter, and collaborative tools.

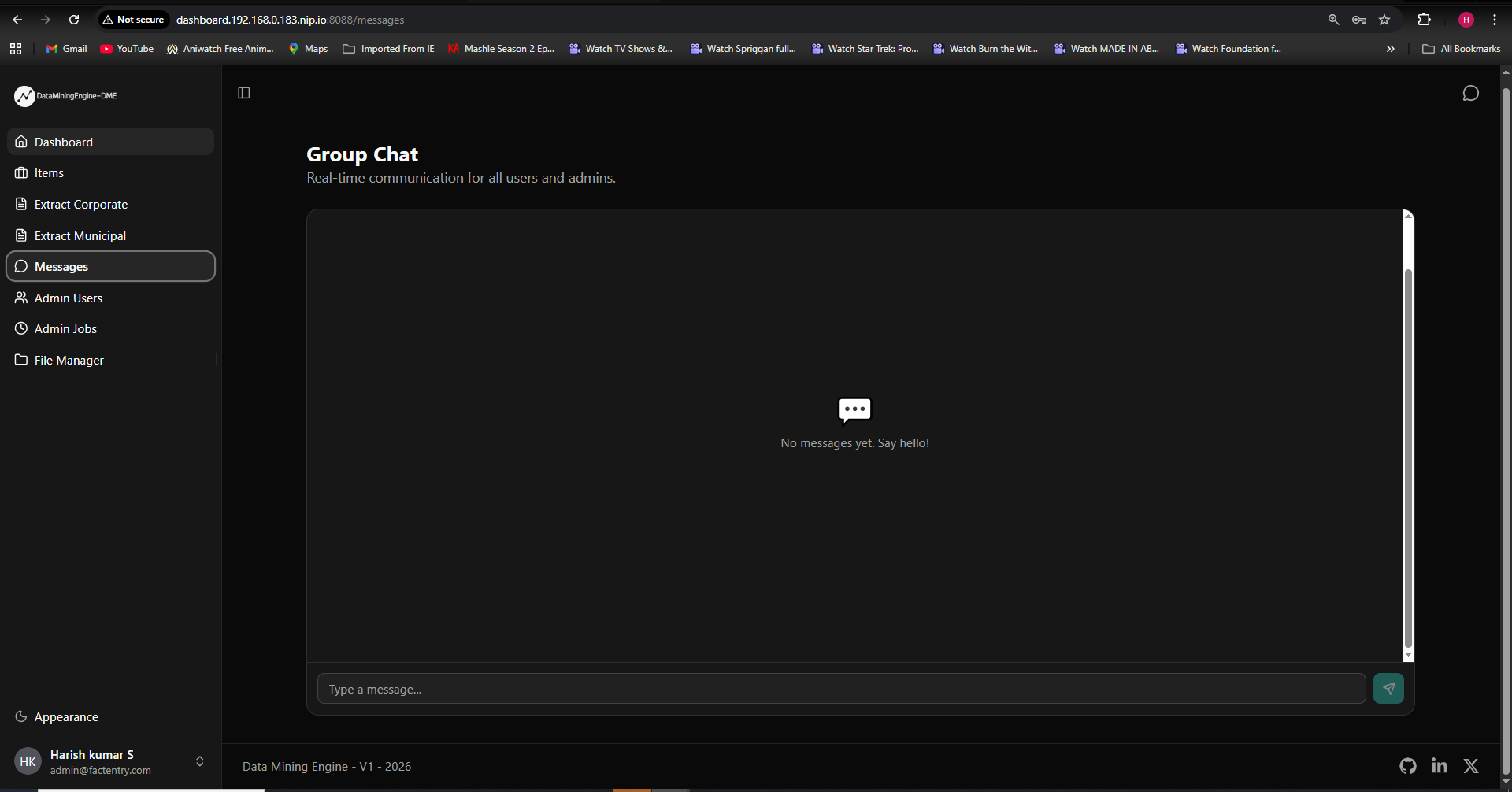

Main Team Support Chat & Broadcasts

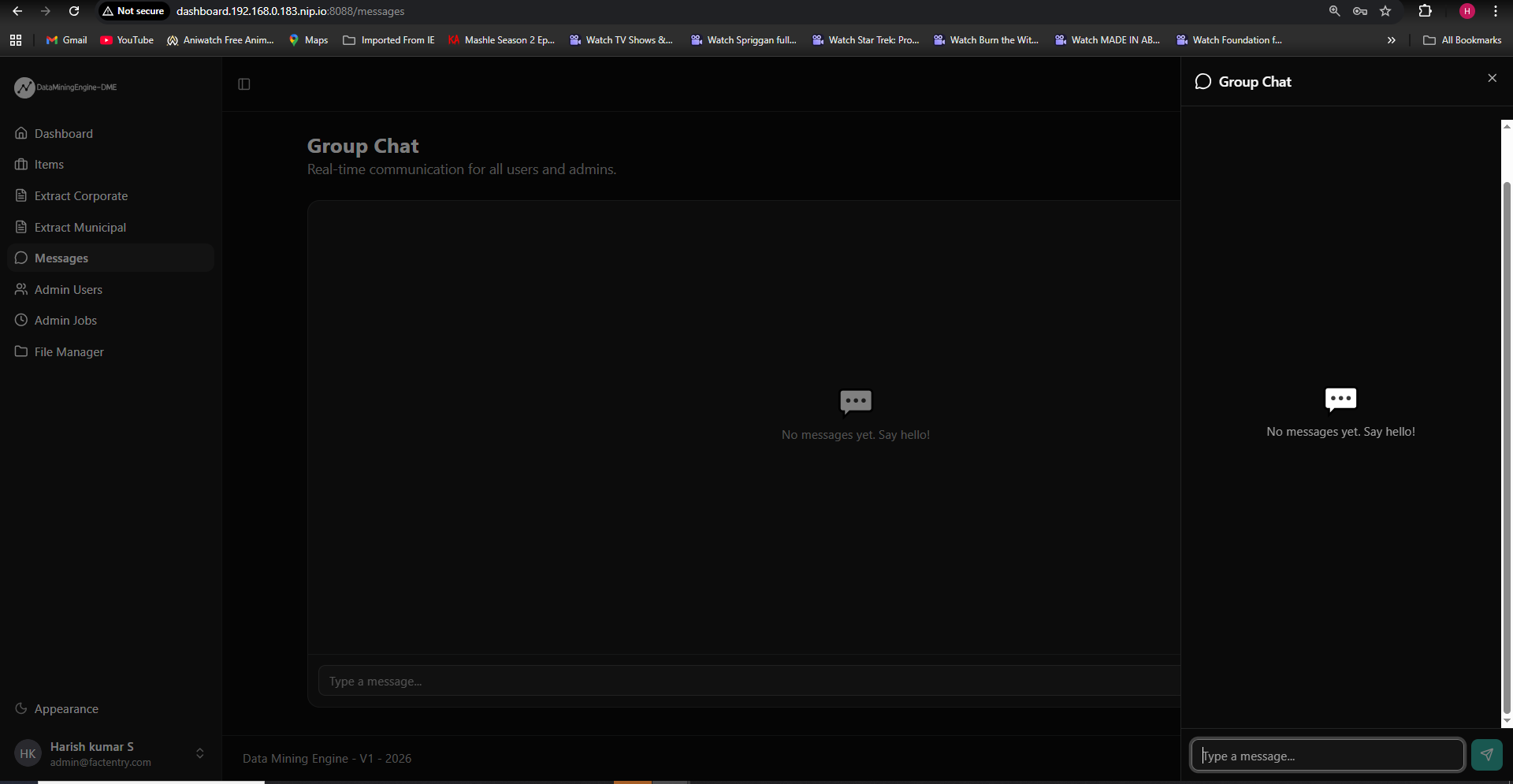

Collapsible Slide-Out Chat Drawer

Admin Jobs & Team Management

Robust backend tools for superusers to manage cross-tenant extraction jobs and govern dynamic team allocations natively in the browser.

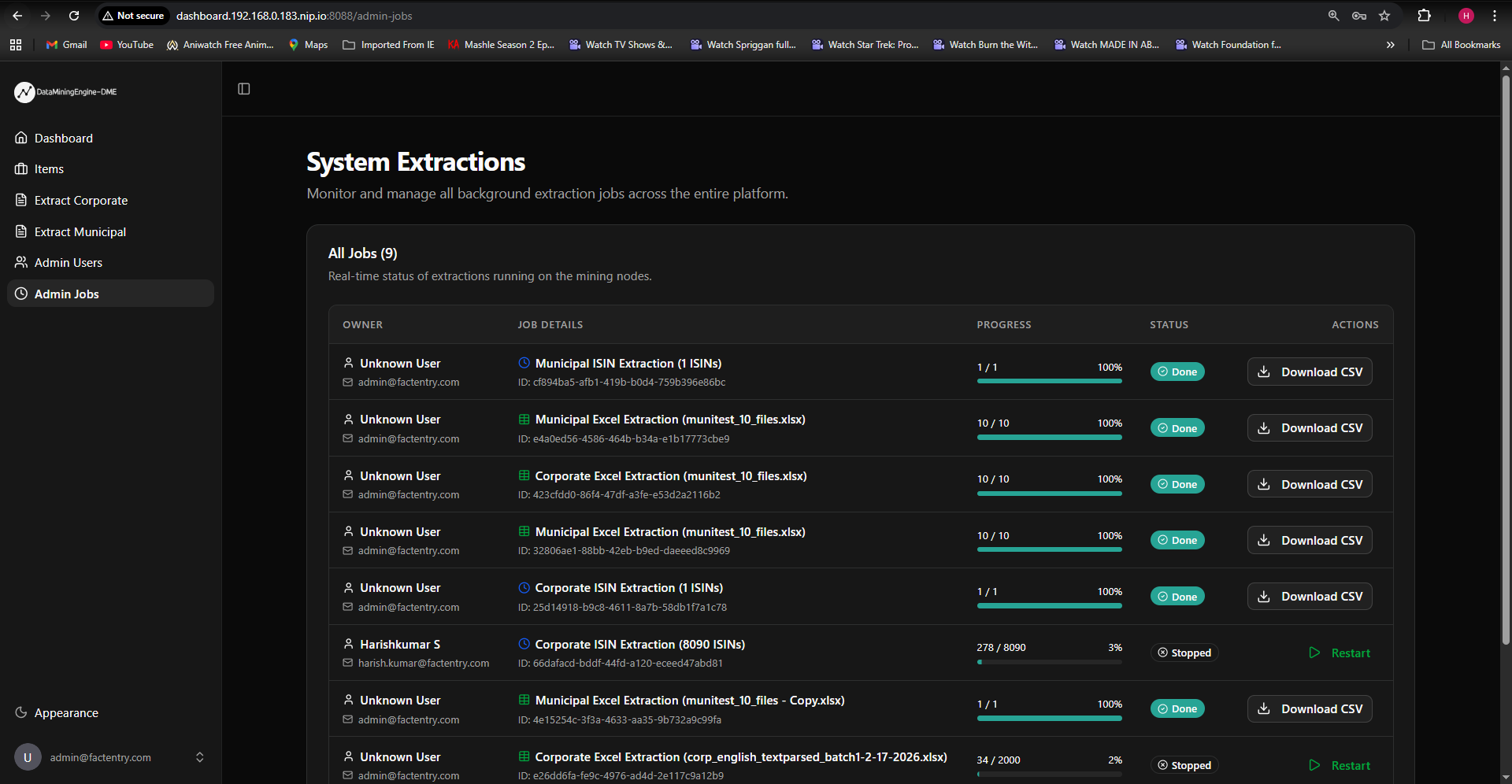

Global Admin Jobs View

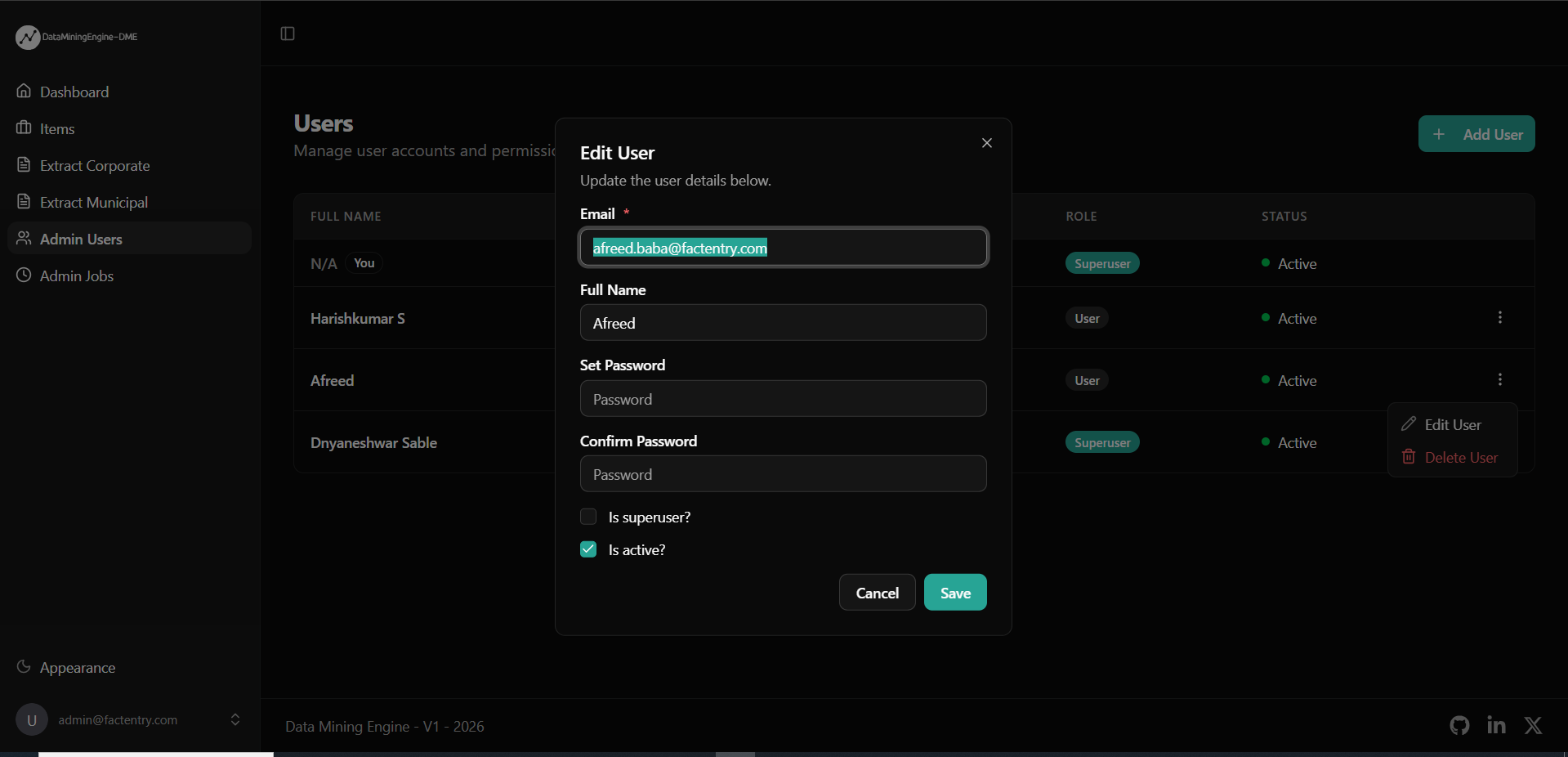

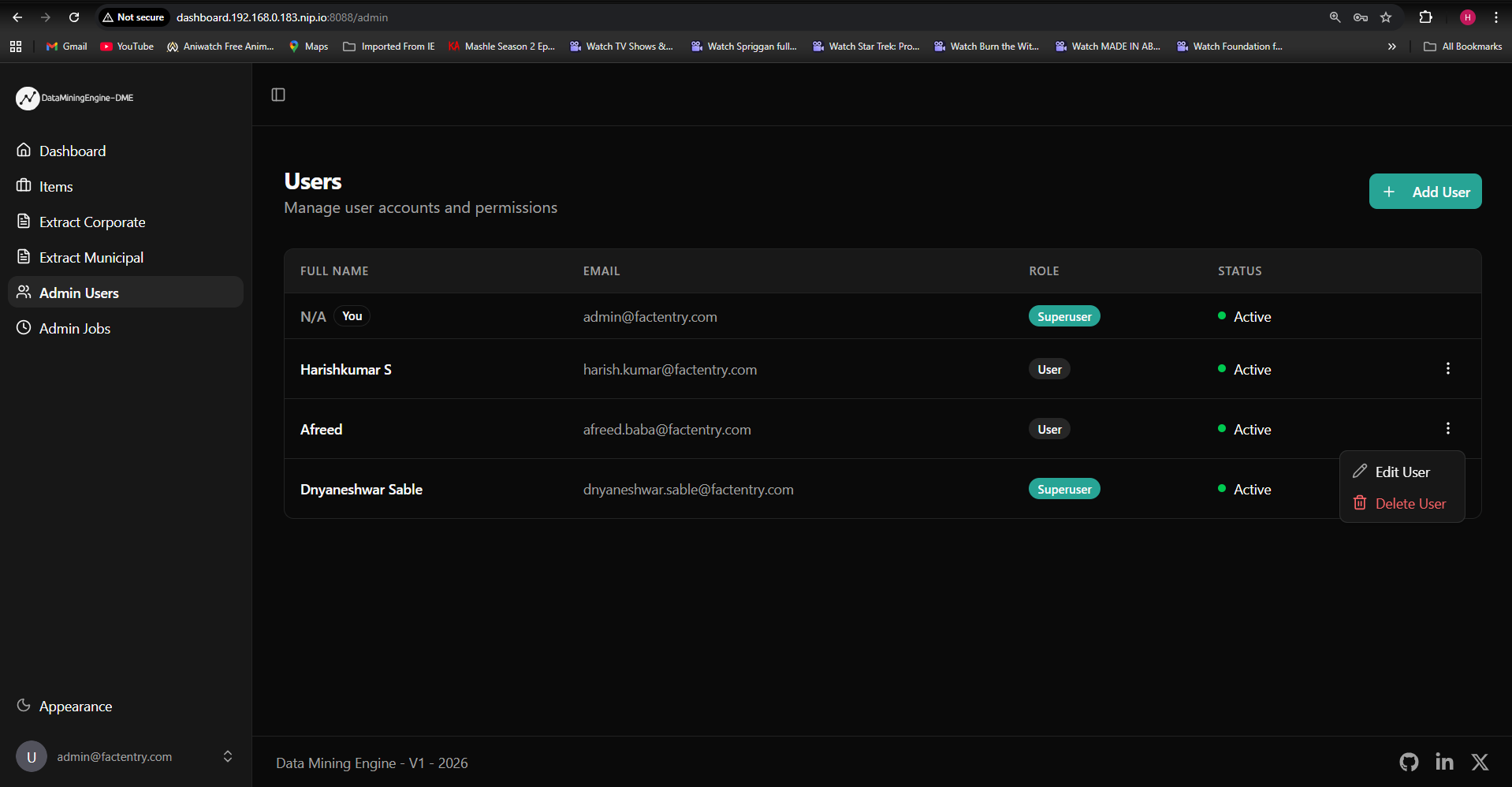

Global User Management

Role & Permissions Editor

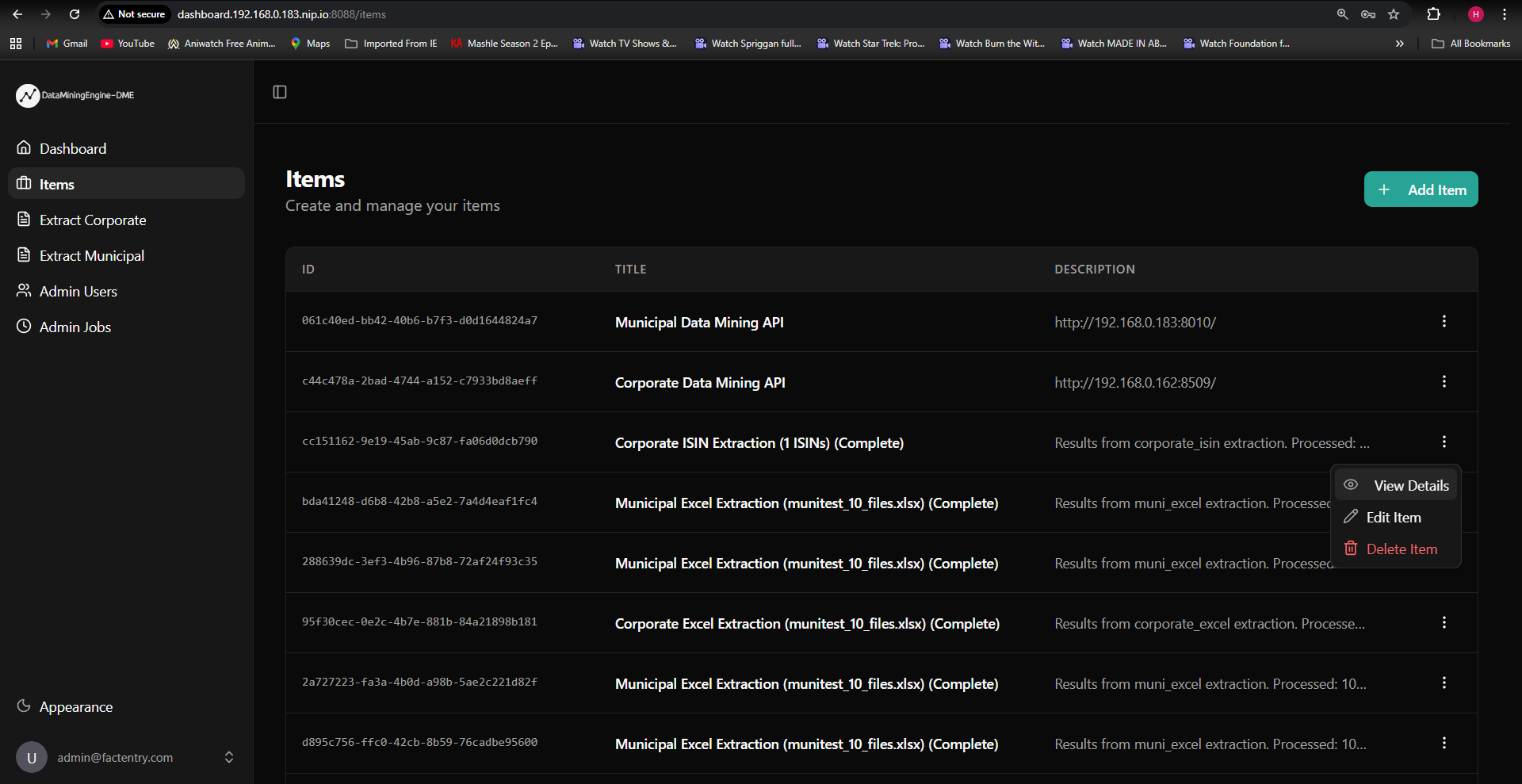

Extraction Results Table

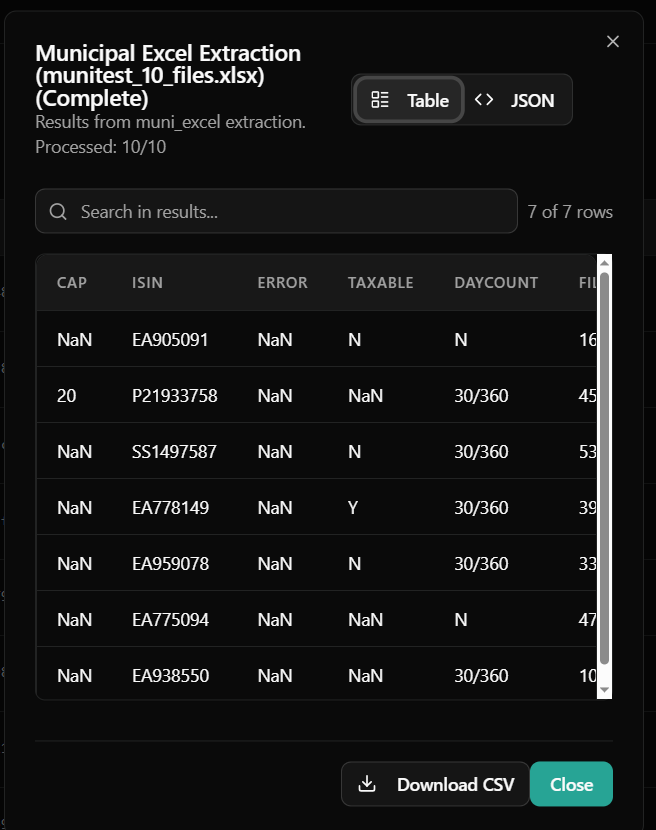

Detailed Item Inspector

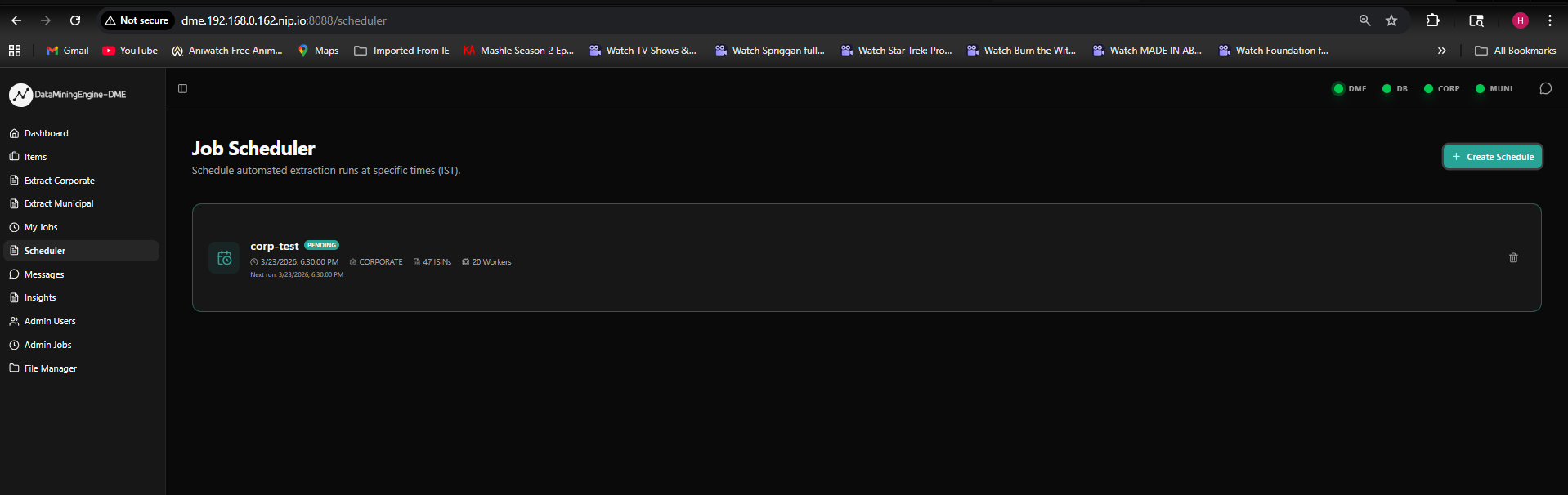

Job Scheduler Engine

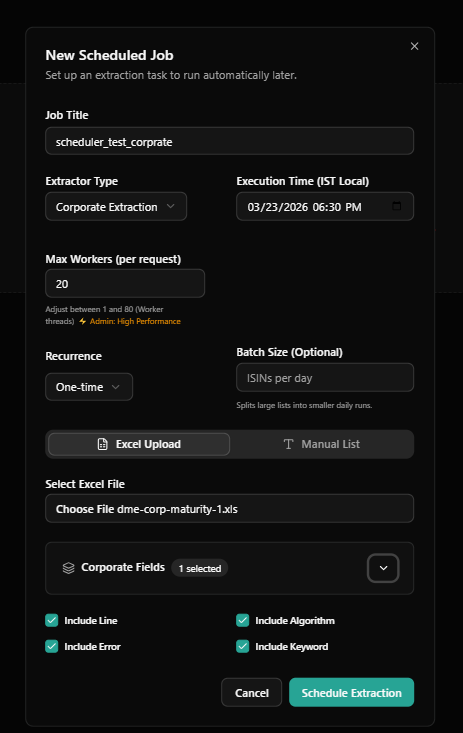

Recurring Job Configuration

Visual Extraction Calendar

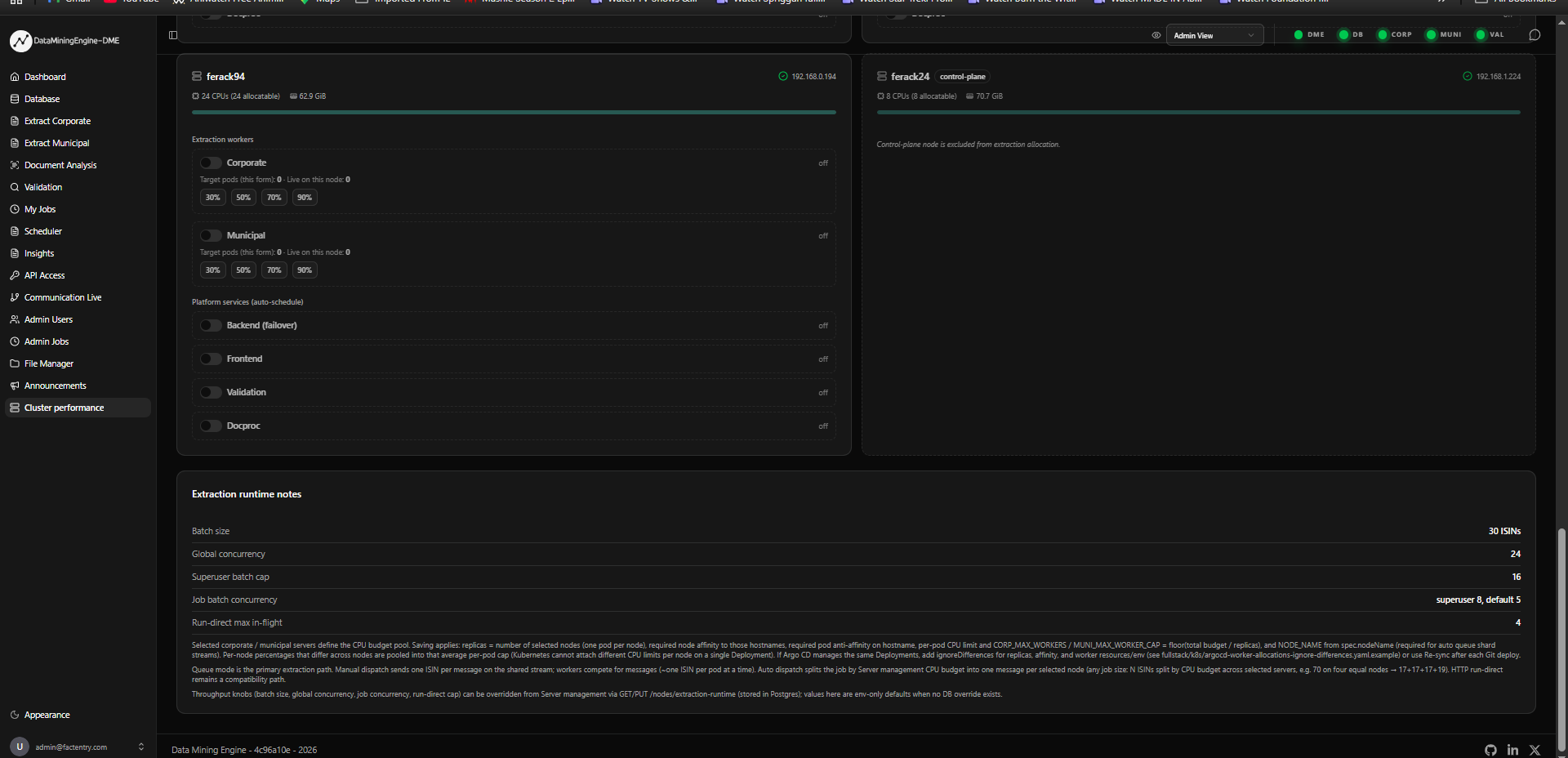

Server Cluster Management

The cluster management UI (`/server-potential`) provides superuser control for worker/server placement (Fleet, Controls, Argo tabs), disk-pressure visibility, worker evacuate/relocate with explicit target nodes, dynamic Kubernetes affinity patches, and live extraction throttling overrides via PostgreSQL.

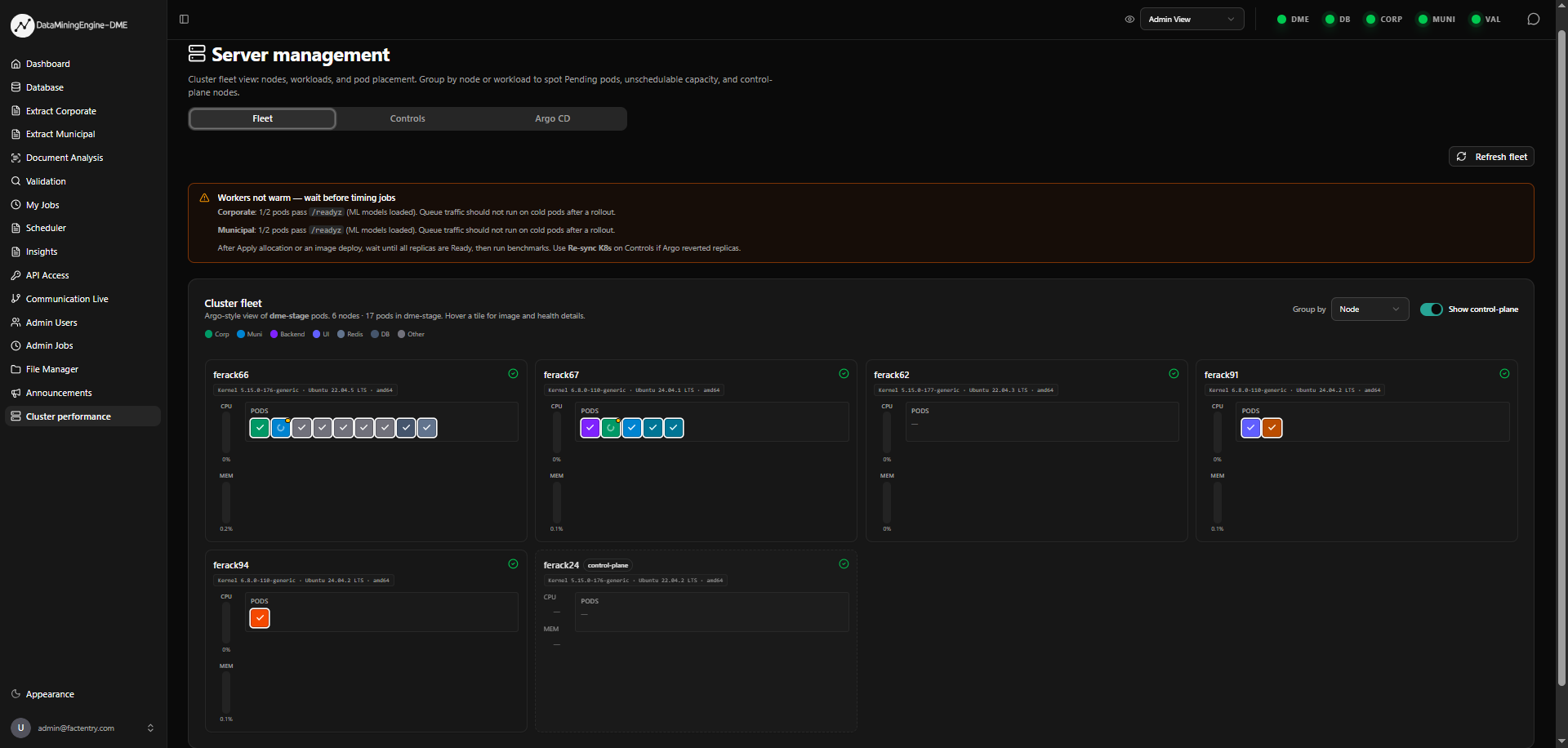

Node & Live Pod Fleet Map

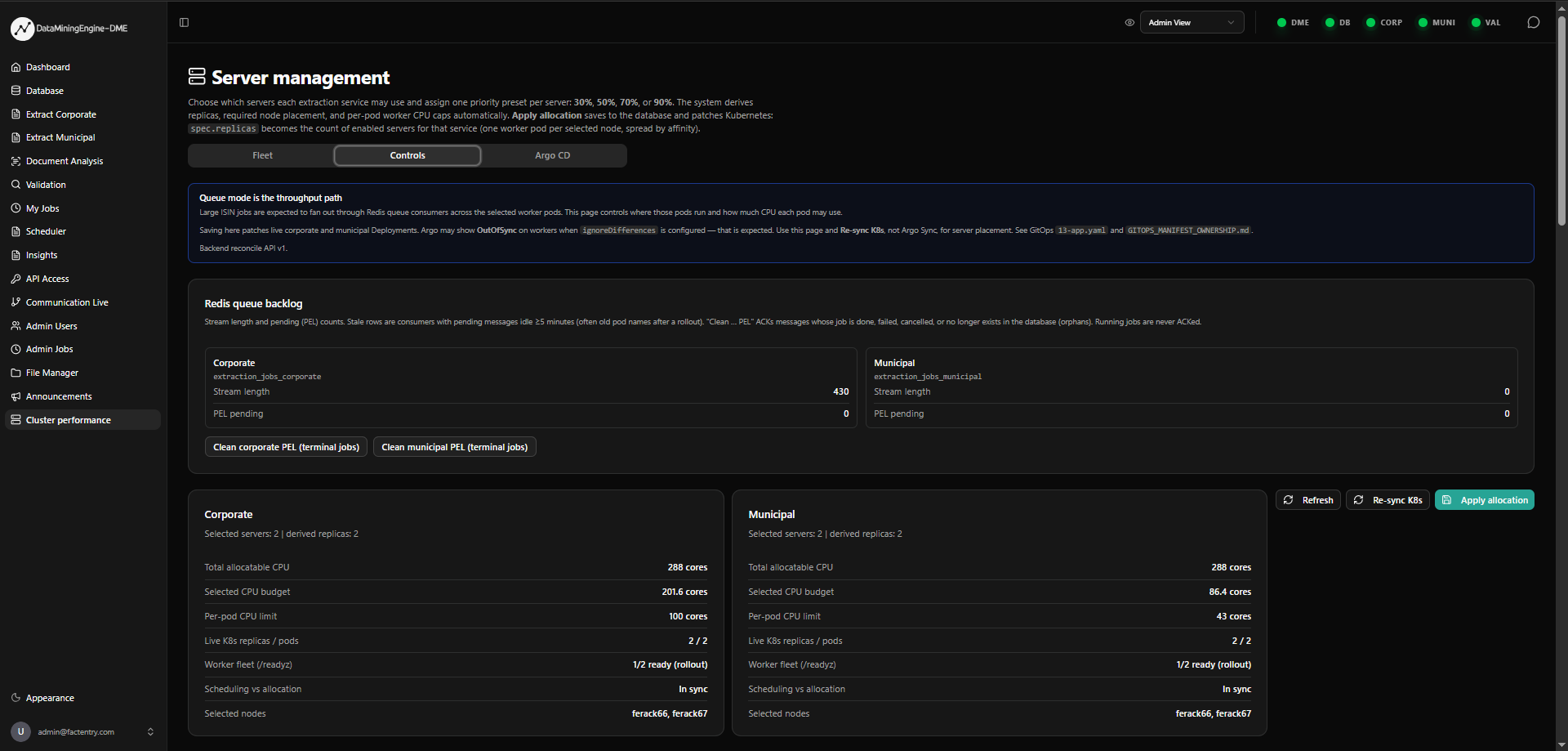

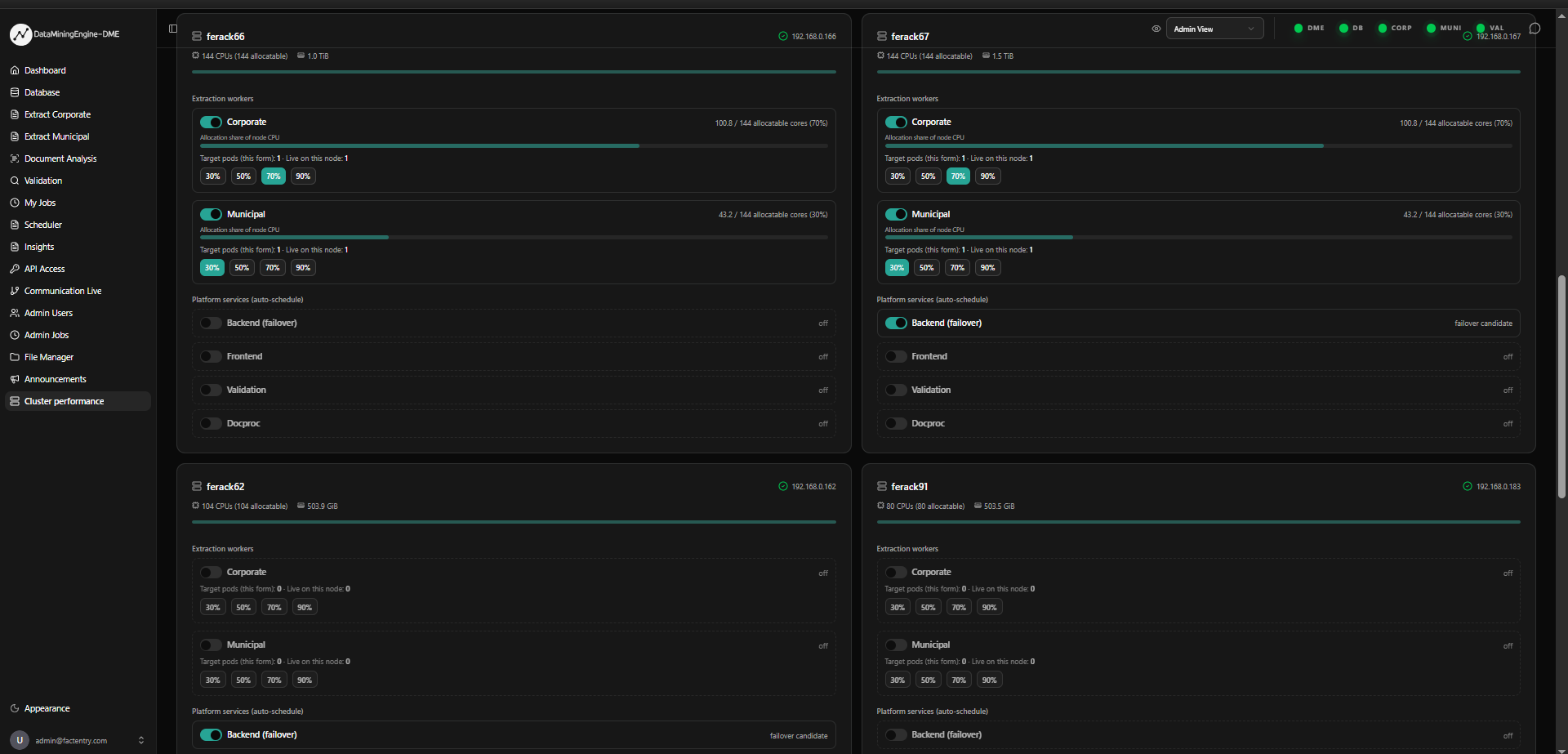

Placement Controls & CPU Budgets

Backend Throttling Configuration

Frontend Server Targets

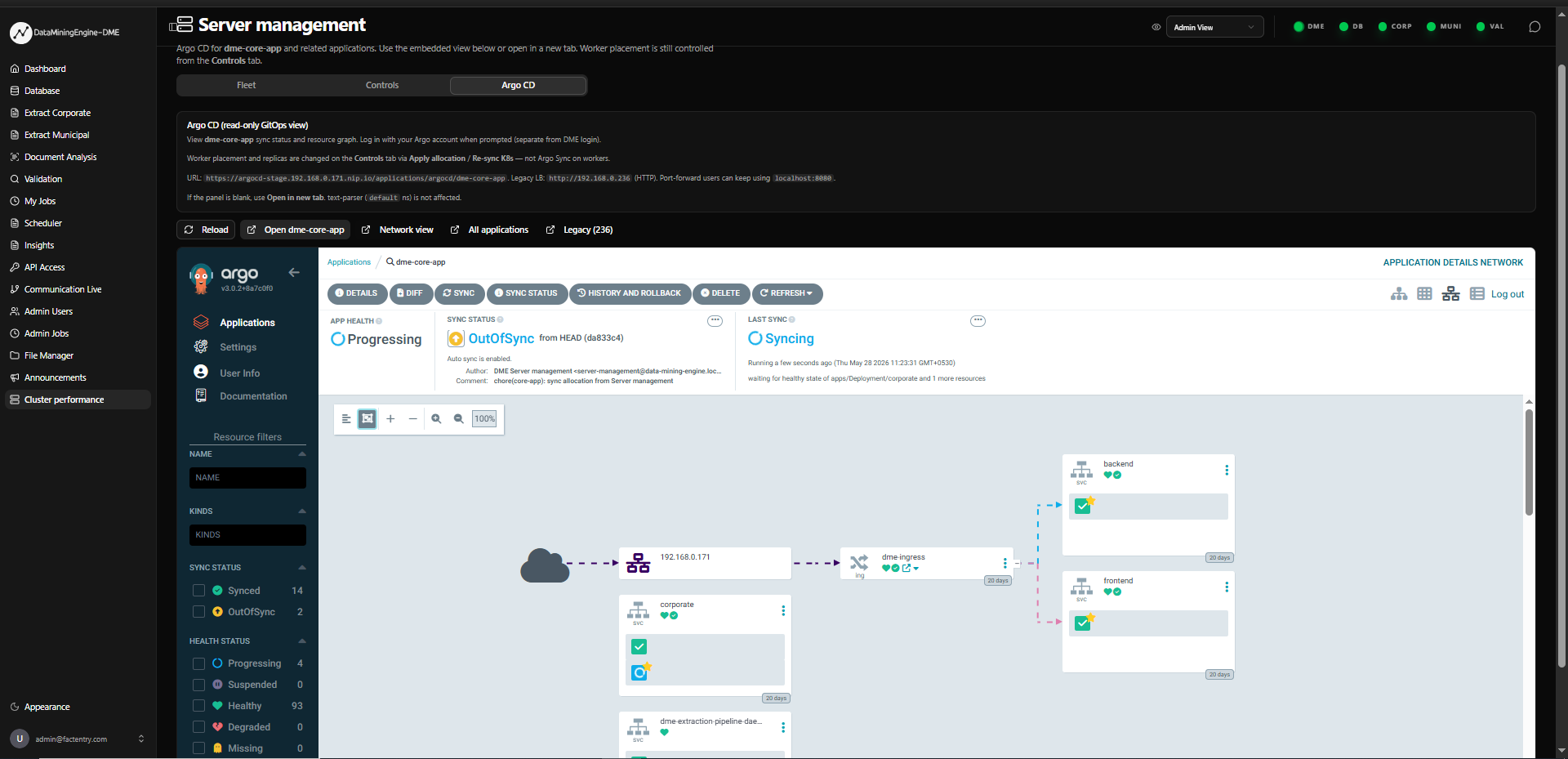

ArgoCD Drift Sync Checks

API Access Portal

A built-in developer-facing portal generating cURL examples, response schemas, API key tier provisioning, and live usage monitoring natively from the FastAPI backend.

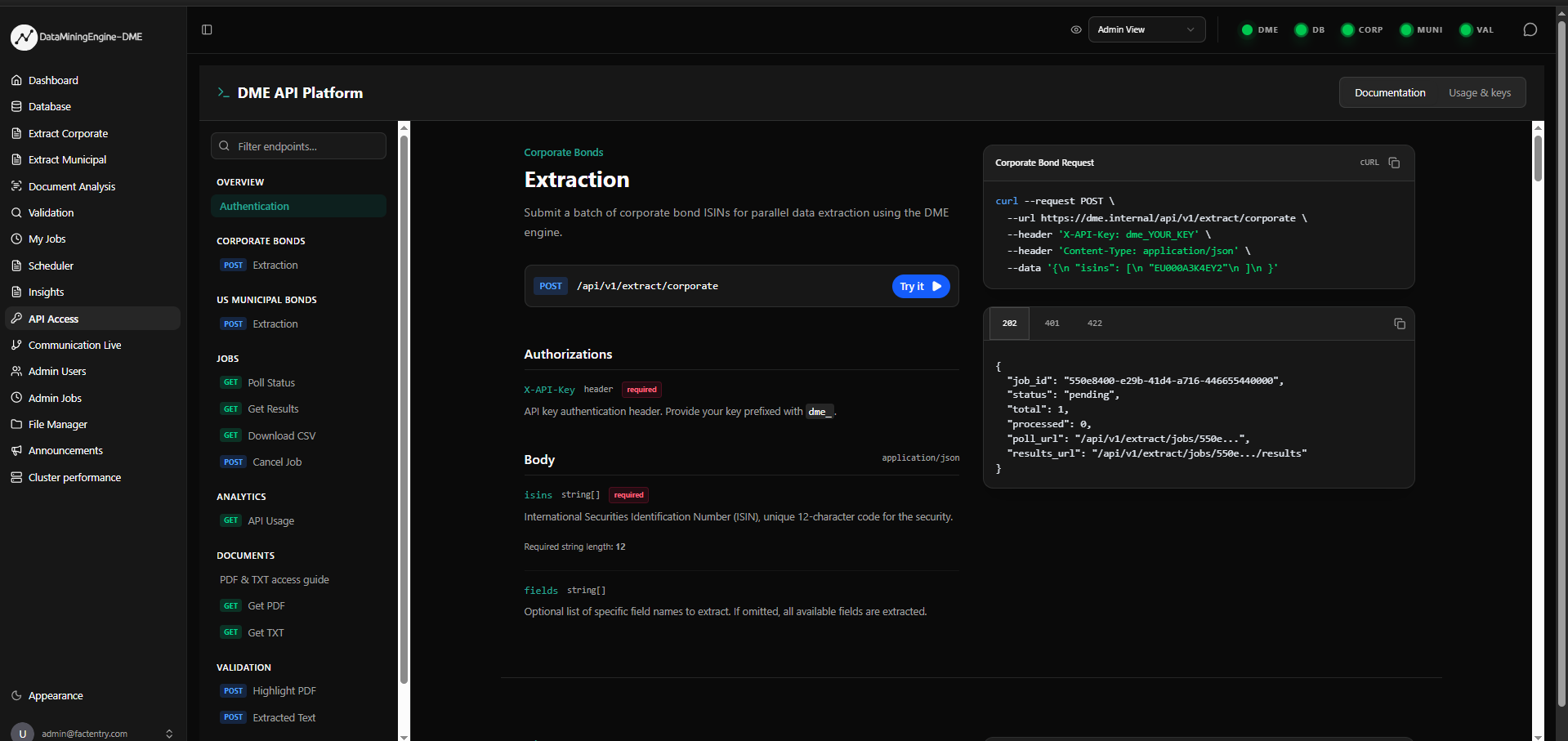

Interactive Endpoint Documentation

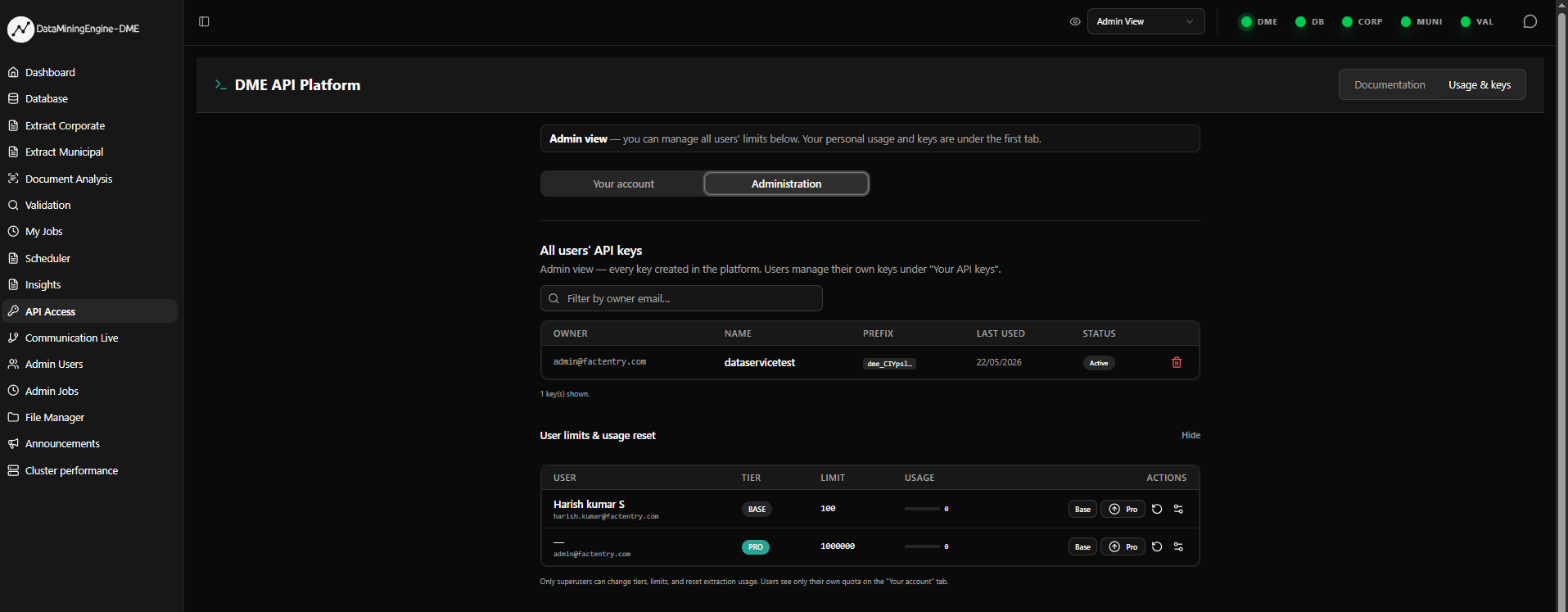

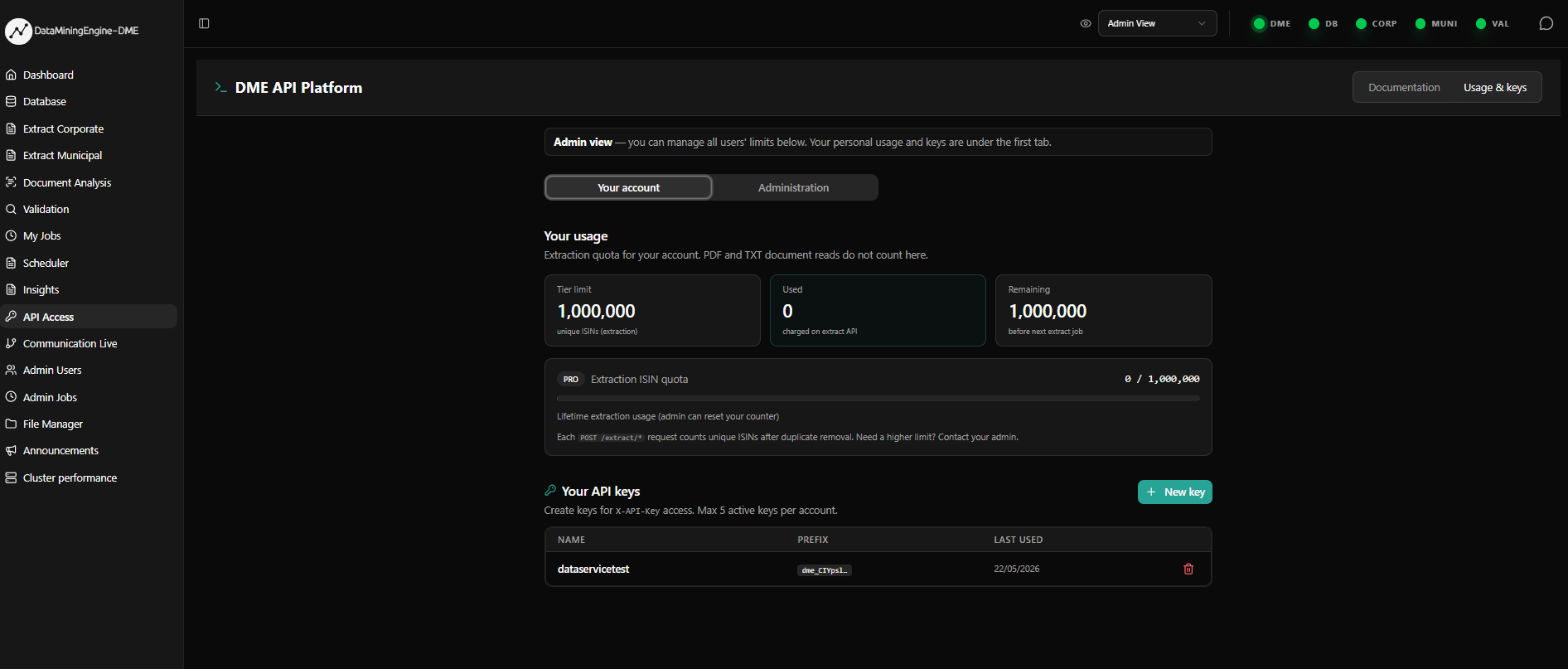

API Key Provisioning

Rate Limits & Tier Management

Two Repositories

data-mining-engine — application code, GitLab CI (build-k3-*, promote-k3-*-docfin), branch k3s-numaflow-migration.
docfin_ai_charts — Helm charts Argo CD syncs (DME/core-app, dme-data-services, …). Image pins live in values.yaml.

All architecture diagrams (full stack, dispatch, worker pipeline, cluster ops) are in the Overview → Architecture & system flows section.

CI/CD → GitOps → K3 (stage)

Push or New pipeline on k3s-numaflow-migration builds all service images at one commit SHA, promote jobs commit tags to charts Git, then Argo CD rolls dme-stage automatically.

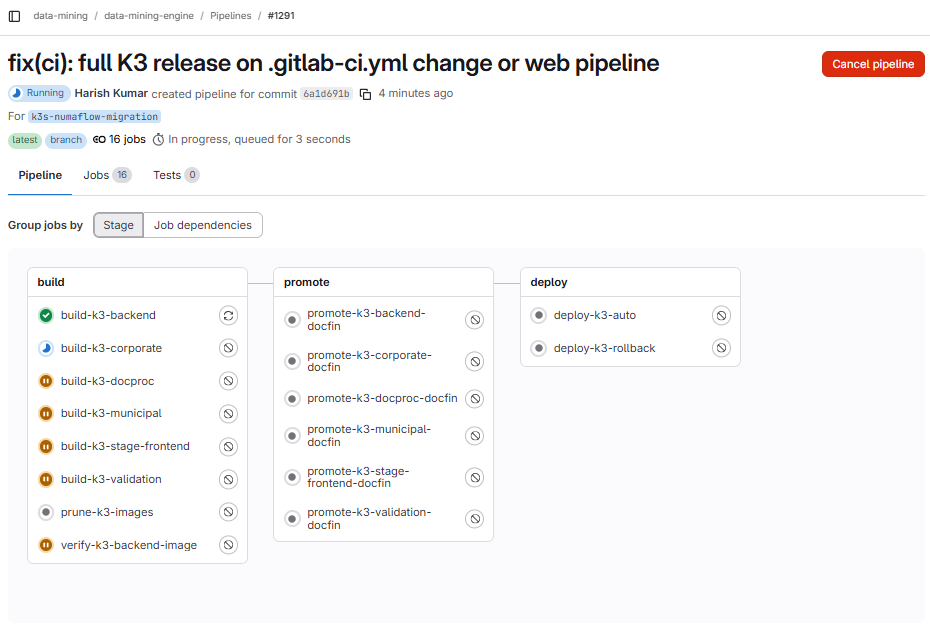

Live GitLab pipeline: build → promote → deploy

GitLab CI build promote docfin charts Argo CD sync

CI/CD: build-k3 → registry → promote docfin_ai_charts → Argo sync dme-stage

Runtime Architecture (browser → workers)

Browser Ingress backend Redis corporate municipal SMB

Request path and data plane (queue mode). Server management patches corp/muni placement at runtime; Argo ignores those fields via ignoreDifferences.

Full stack diagram (runtime + GitOps)

End-to-end DME architecture — clients, ingress, GitOps, workers

Edge TLS, core app, data plane, GitLab CI, and Argo CD.

K3s Container Deployment

The application is fully containerized across a multi-node K3s cluster. The engines mount massive SMB network shares dynamically to skip HTTP transfer overhead.

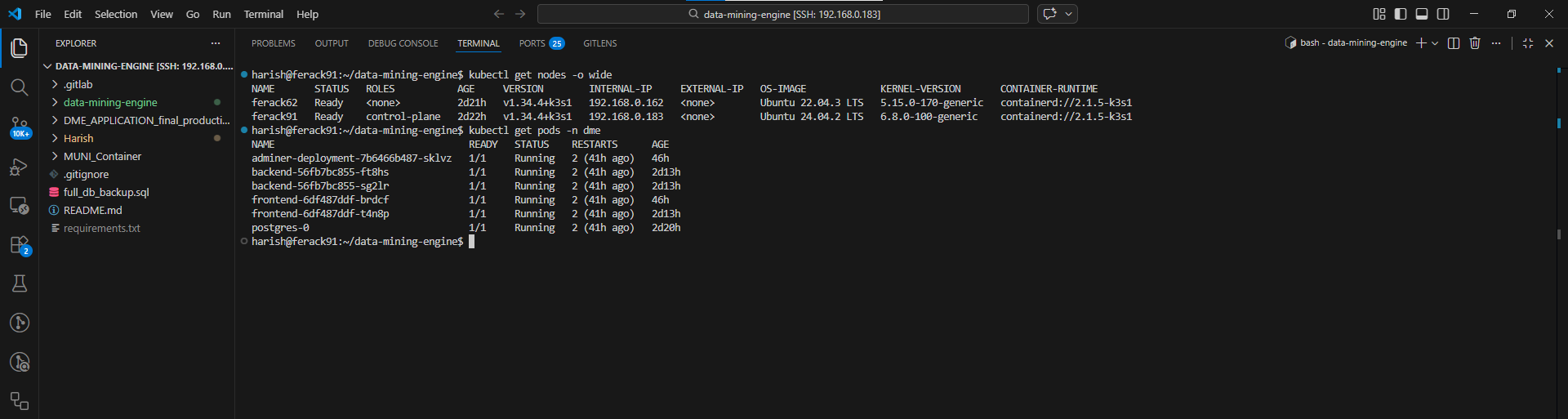

Master-Worker K3s Topology

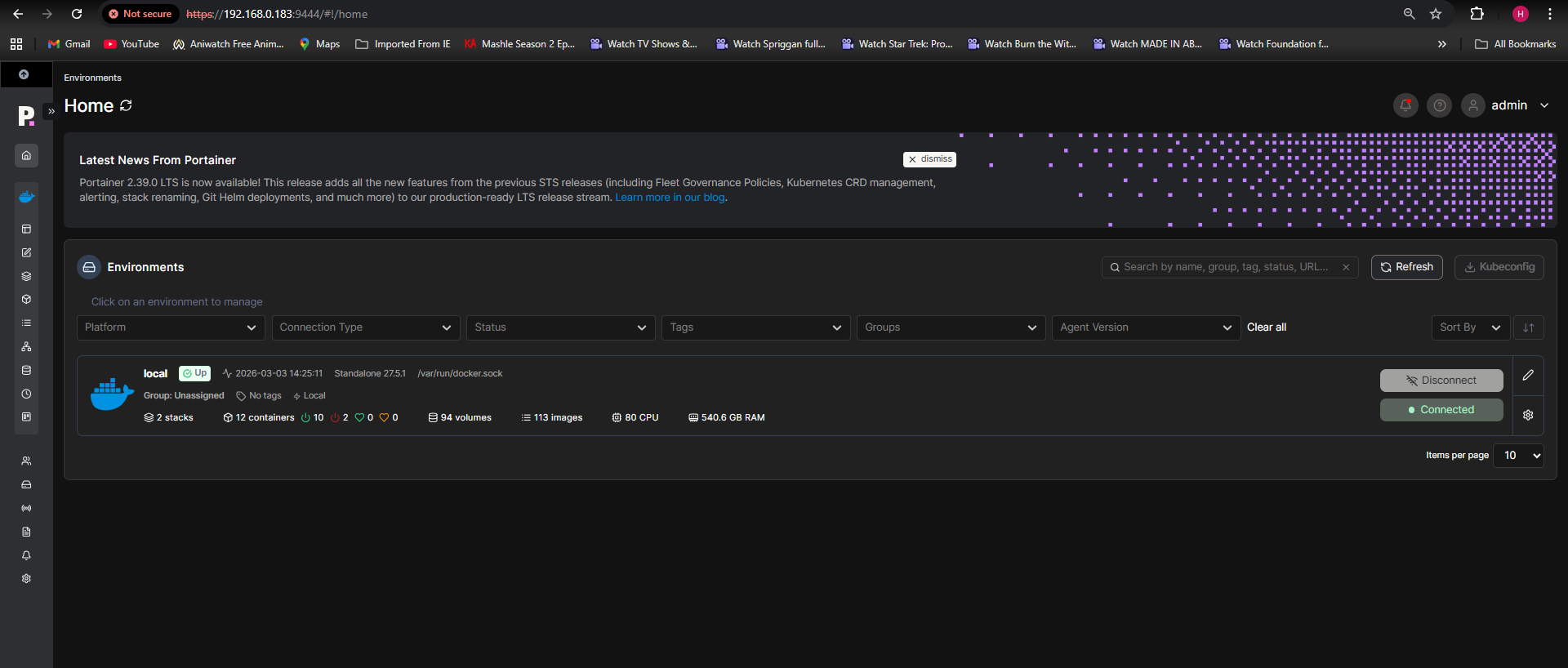

Portainer Cluster Metrics

Argo CD Applications

Argo CD watches docfin_ai_charts (not the app repo). Applications include dme-core-app, dme-data-services, dme-platform-network, and dme-nats with automated sync and self-heal. SMB PVCs sync before worker rollouts.

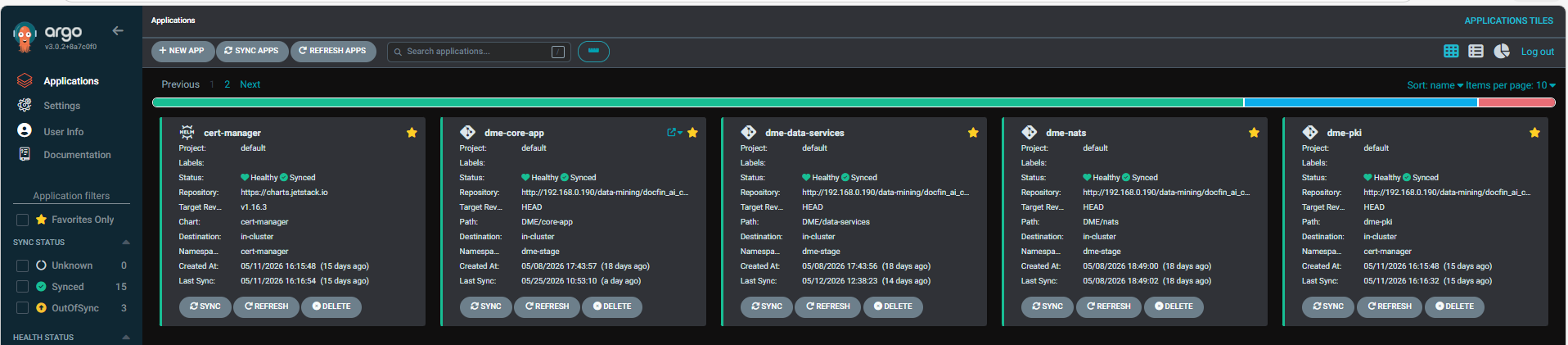

Global ArgoCD Application Fleet

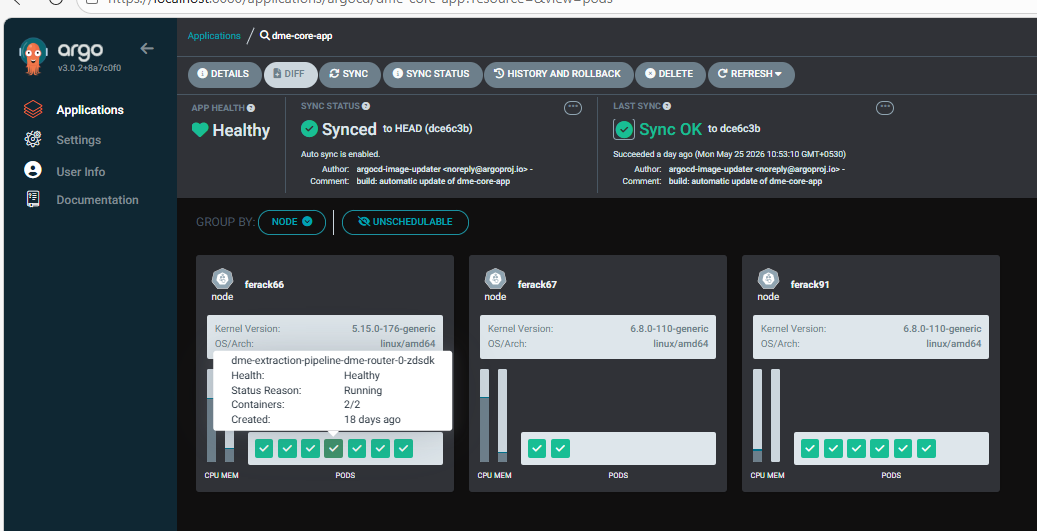

Core App Synchronization

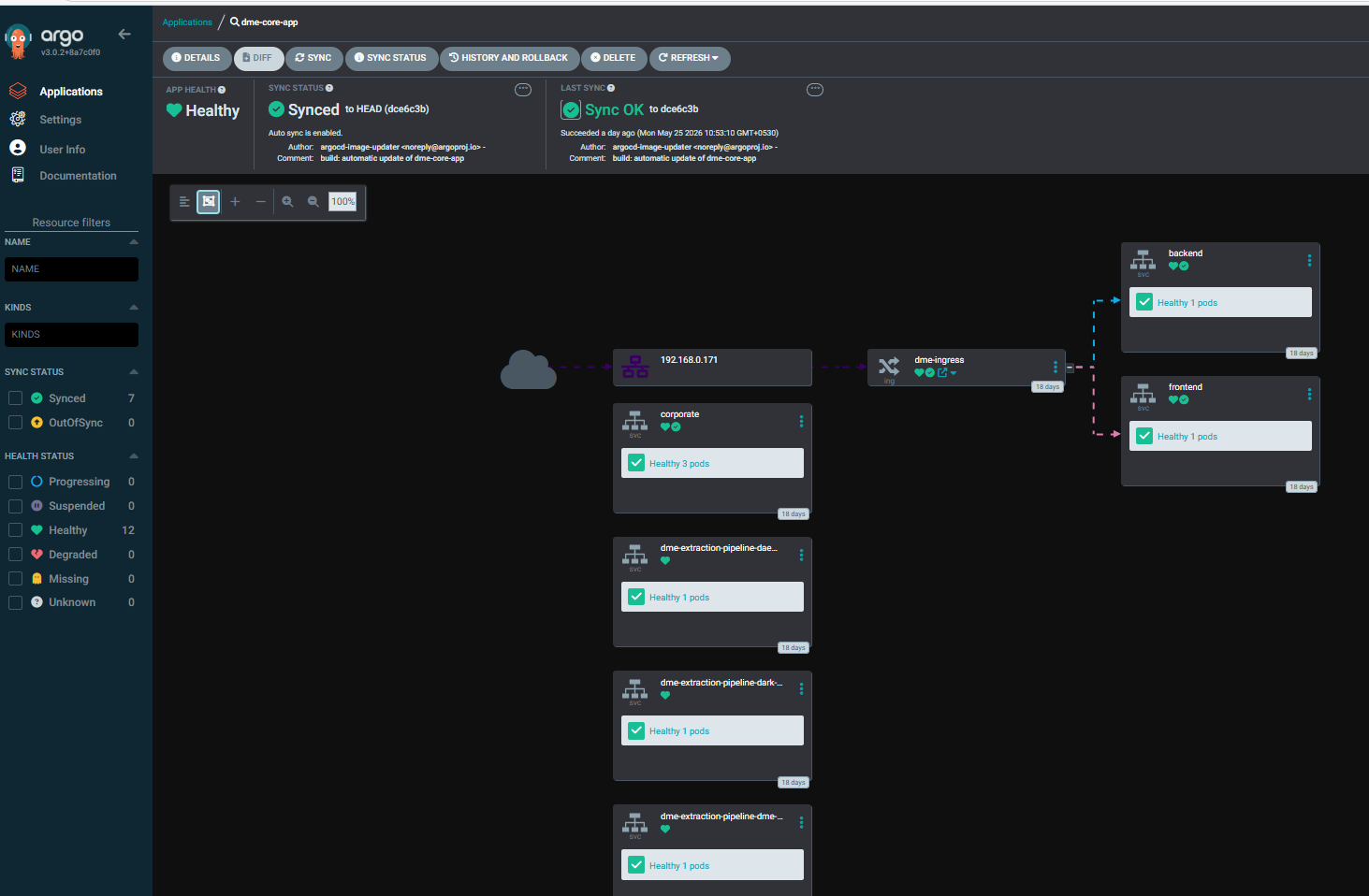

Core App Deployment Tree

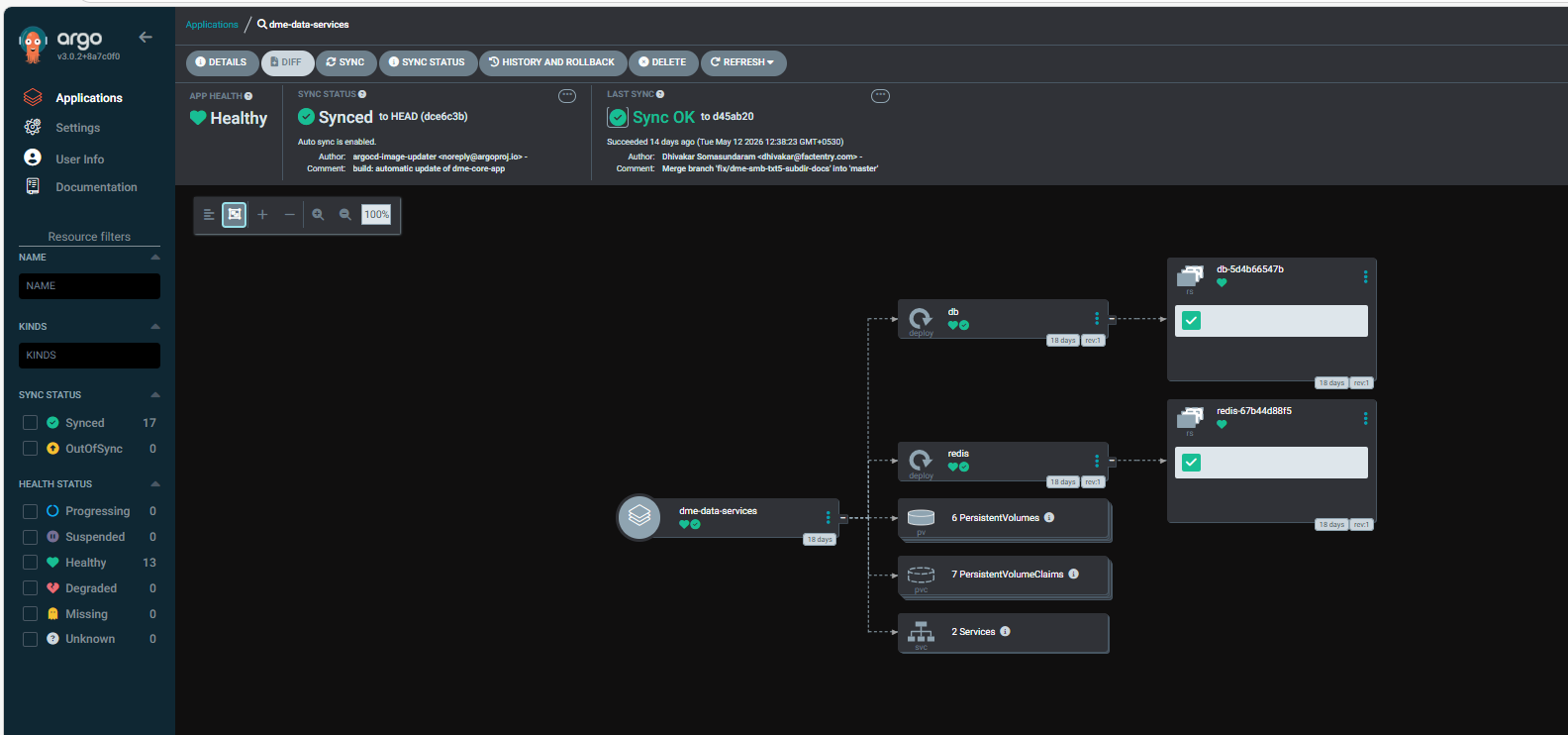

SMB Volumes & Postgres Data

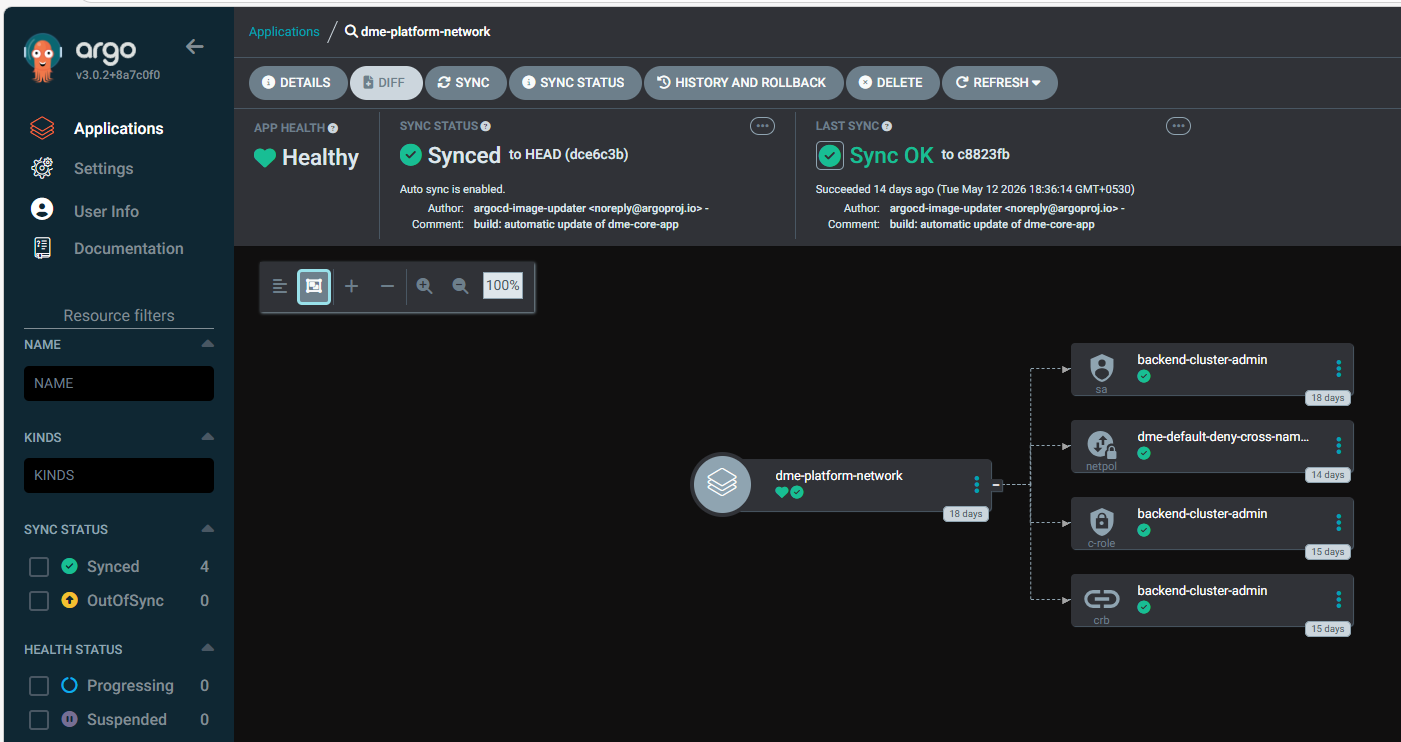

Platform Networking

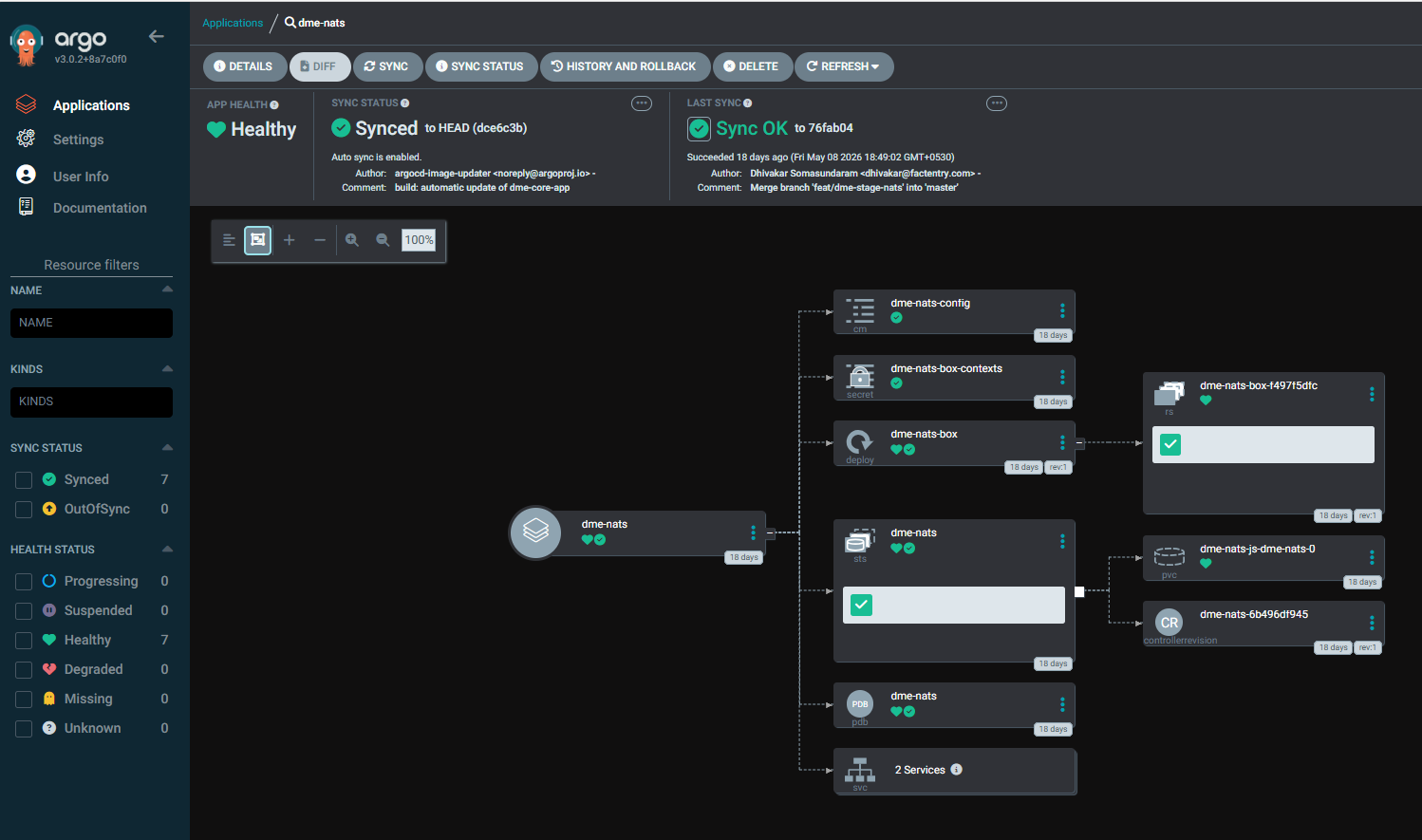

NATS JetStream Queue Infrastructure

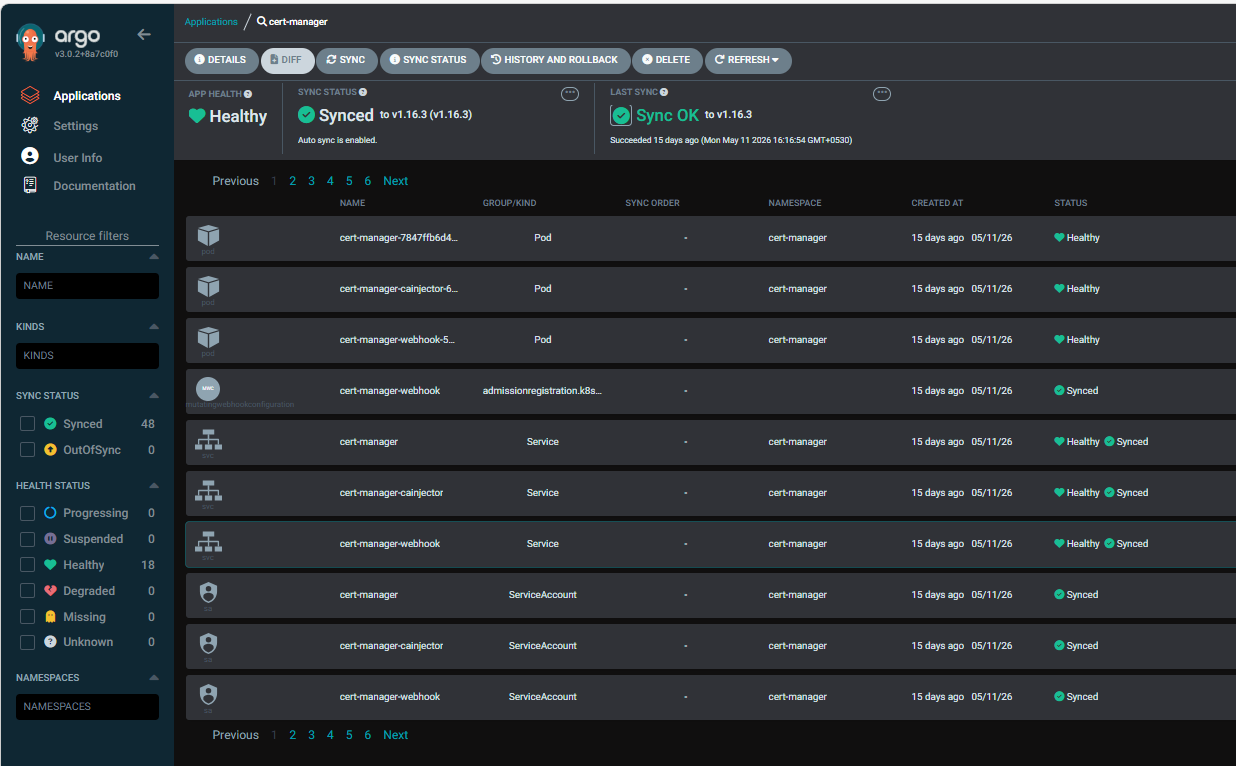

Cert Manager Deployment

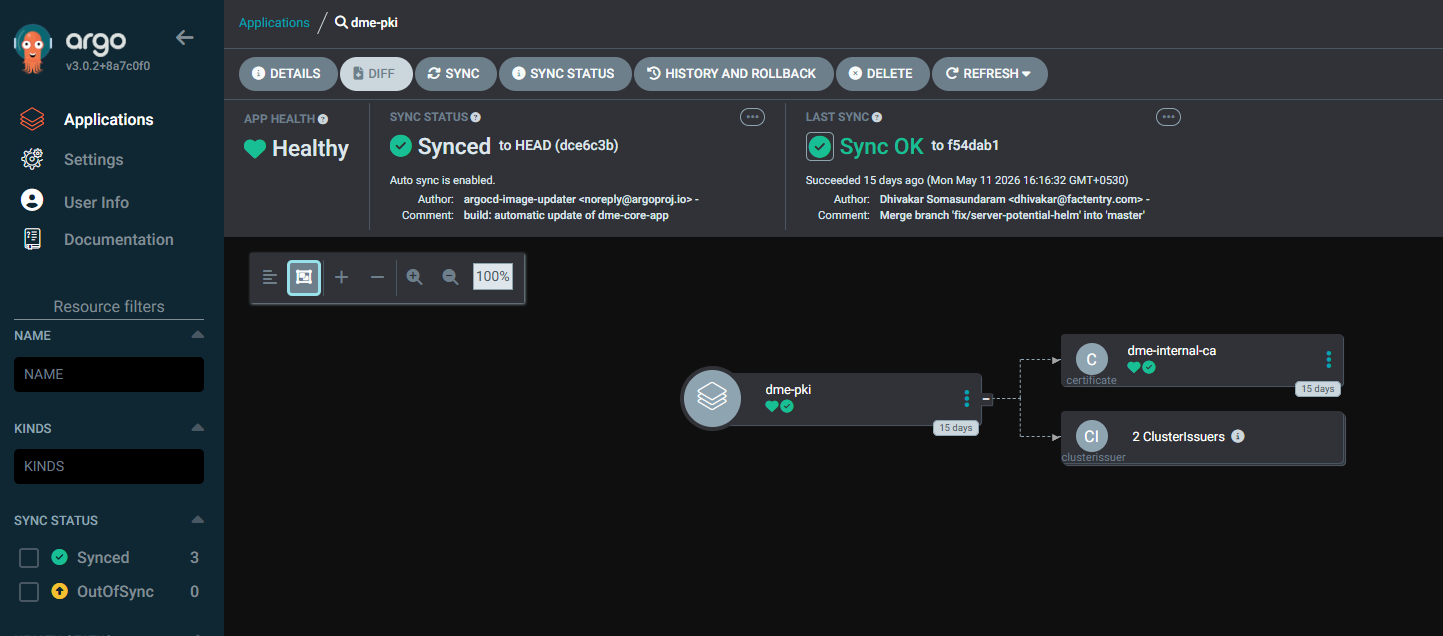

Internal PKI Management
