Fixed Income Expert System

RAG chatbot for financial bond documents

FactEntry Data Solutions (A SIX Company)

LLaMA 3 8B via Groq
FAISS semantic search
FastAPI + Streamlit
systemd deployment

An AI-powered Q&A system that lets internal teams upload bond documentation PDFs and query them in natural language. Built with FastAPI backend, Streamlit frontend, SBERT embeddings, FAISS vector search, and LLaMA 3 8B via Groq API — deployed as persistent Linux systemd services for internal organisational use.

What it does

The Fixed Income Expert System allows finance teams to upload internal bond PDFs — deal sheets, policy documents, callable bond schedules — and ask natural-language questions like "What is the maturity date for bond XYZ?" or "List all callable bonds issued after 2020." The system retrieves relevant context from FAISS and sends it to LLaMA 3 8B via Groq for a grounded, concise answer.

Groq LLaMA 3 8B FAISS vector DB SBERT MiniLM embeddings systemd services Internal org deployment

Python FastAPI Streamlit FAISS Sentence Transformers LangChain PyMuPDF Groq API

Features

Knowledge Ingestion: Upload PDFs and extract structured, chunked content using heading-based and RecursiveCharacterTextSplitter strategies.
Semantic Search with FAISS: Find top-K relevant chunks using vector similarity with sentence-transformers/all-MiniLM-L6-v2 embeddings.
LLM Answering: LLaMA 3 8B via Groq API answers questions based only on retrieved context — no hallucination fallback.
File Metadata Management: View all uploaded files with chunk statistics and upload timestamps.
Clean Prompt Engineering: Optimised system prompts for precise, context-only responses.
Modular Architecture: Clean separation of backend (FastAPI) and frontend (Streamlit) with REST integration.

API Endpoints

Method	Endpoint	Description
POST	`/upload`	Upload and process a PDF file — extract, chunk, embed, index
POST	`/query`	Ask a natural-language question — returns grounded LLM answer
GET	`/list-files`	Retrieve metadata of all uploaded PDFs (chunks, timestamp)

Prompt template

You are a Financial Expert Bot. Your task is to provide accurate and concise answers
to the user's questions based on the provided context.

Instructions:
- No disclaimers or unnecessary information.
- No "I don't know" or "I'm an AI" type responses.
- If the answer is not in context, say: "The answer is not in the context."

Project structure

fixed-income-expert/
├── backend/
│   └── backend.py          # FastAPI — /upload, /query, /list-files
├── frontend/
│   └── frontend.py         # Streamlit UI
├── embeddings/             # Saved SBERT .npy embedding files (per PDF)
├── text_chunks/            # Pickled text chunks per document
├── metadata/               # JSON metadata per uploaded PDF
├── version-1-linux-service/
│   └── FactEntry_FEexpert/ # systemd service configs + startup scripts
├── .env                    # GROQ_API_KEY
├── requirements.txt
└── docker-compose.yml

Architecture overview

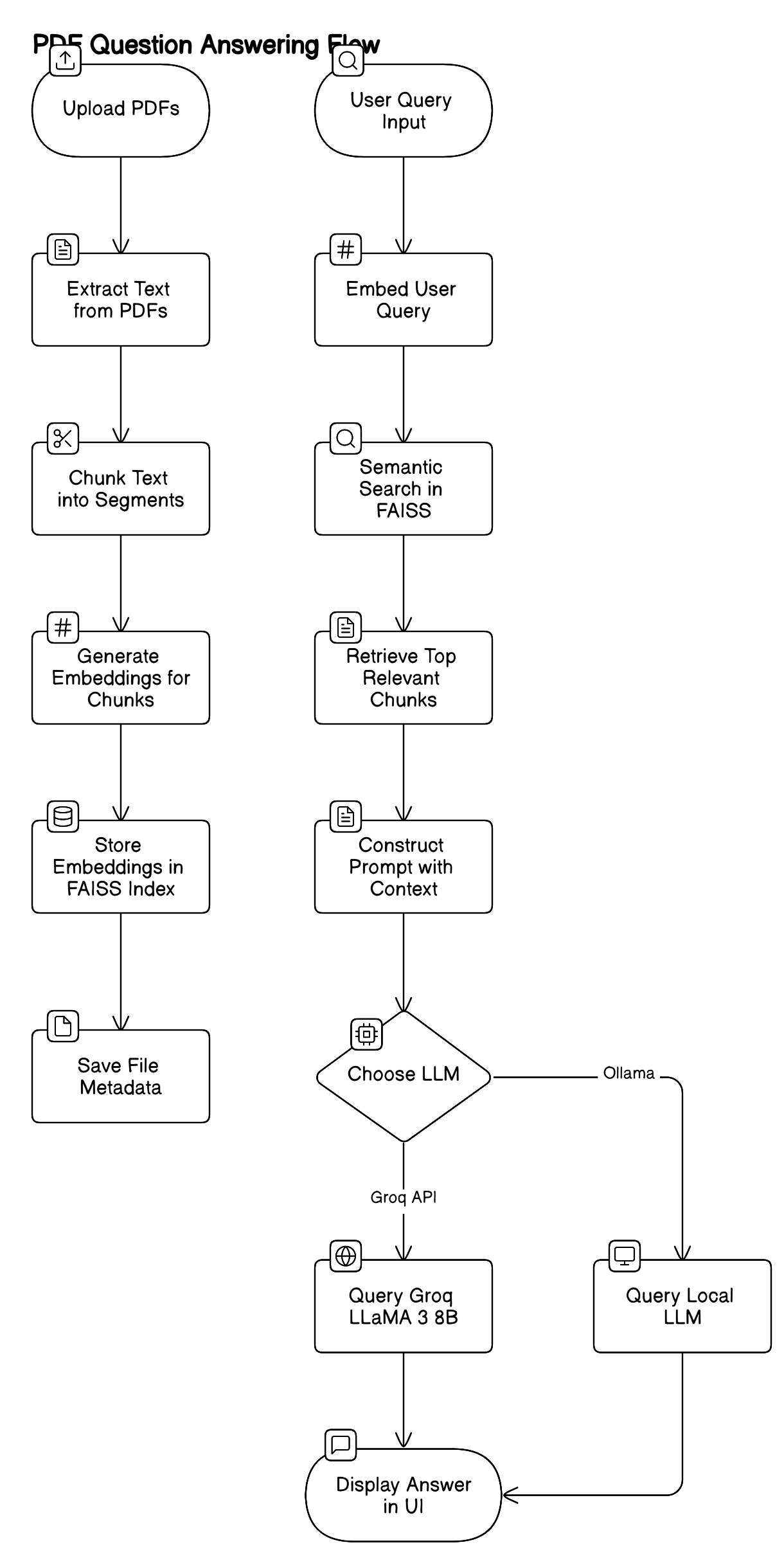

Fixed Income Expert System architecture diagram

Full system architecture — PDF ingestion → FAISS indexing → SBERT embeddings → Groq LLaMA 3 → Streamlit UI

Component breakdown

Streamlit Frontend (port 8501): Three views — upload PDF, ask question, view file metadata. Communicates with backend via REST.
FastAPI Backend (port 8002): Handles PDF parsing (PyMuPDF), text splitting (LangChain), embedding (SBERT), FAISS indexing, and Groq LLM calls.
SBERT MiniLM: sentence-transformers/all-MiniLM-L6-v2 — fast, lightweight semantic embeddings stored as .npy files.
FAISS: In-process vector index for top-K similarity search at query time.
Groq API (LLaMA 3 8B): Ultra-fast inference — context chunks injected into prompt, model returns grounded answer only.
Metadata store: JSON files track each PDF's chunk count, upload timestamp, and file name for the metadata view.

1. Upload PDF

Text is extracted from the uploaded PDF using PyMuPDF (fitz).
Split into logical chunks based on headings and subchunks via LangChain RecursiveCharacterTextSplitter.
Each chunk is embedded using SBERT MiniLM — embeddings saved as .npy files, chunks pickled.
Metadata (chunk count, upload time) stored as JSON.

2. Ask a Question

The query is embedded with the same SBERT model.
FAISS performs top-K similarity search across all indexed chunks.
Top-K relevant chunks are injected into the LLM prompt as context.
Prompt sent to Groq-hosted LLaMA 3 8B — returns a precise, context-grounded answer.

3. View uploaded files

Lists all uploaded PDFs with metadata: number of chunks and upload timestamp.

Example queries

"What is the maturity date for bond XYZ?"
"Who is the issuer of the 2023 floating bond?"
"List all callable bonds issued after 2020."
"What is the coupon rate for the 5-year fixed bond?"

Tech stack

Layer	Technology
Frontend	Streamlit
Backend	FastAPI + uvicorn
Embedding model	`sentence-transformers/all-MiniLM-L6-v2`
Vector search	FAISS (in-process)
LLM provider	Groq API — LLaMA 3 8B
PDF parsing	PyMuPDF (`fitz`)
Text splitting	LangChain `RecursiveCharacterTextSplitter`
Deployment	systemd services on Linux server

Streamlit UI

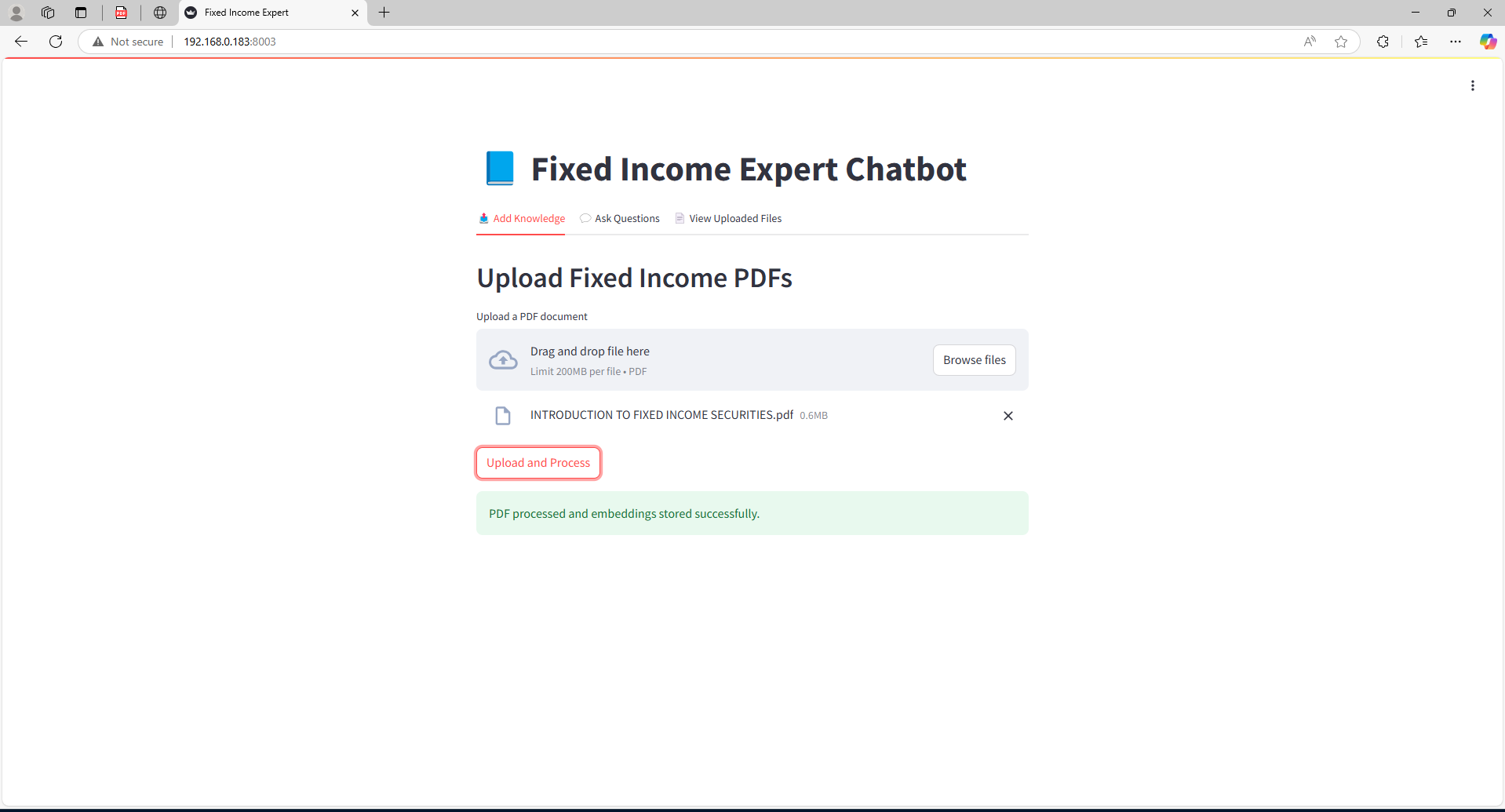

Streamlit — Upload and embed PDF section

Upload & embed — PDF ingestion view

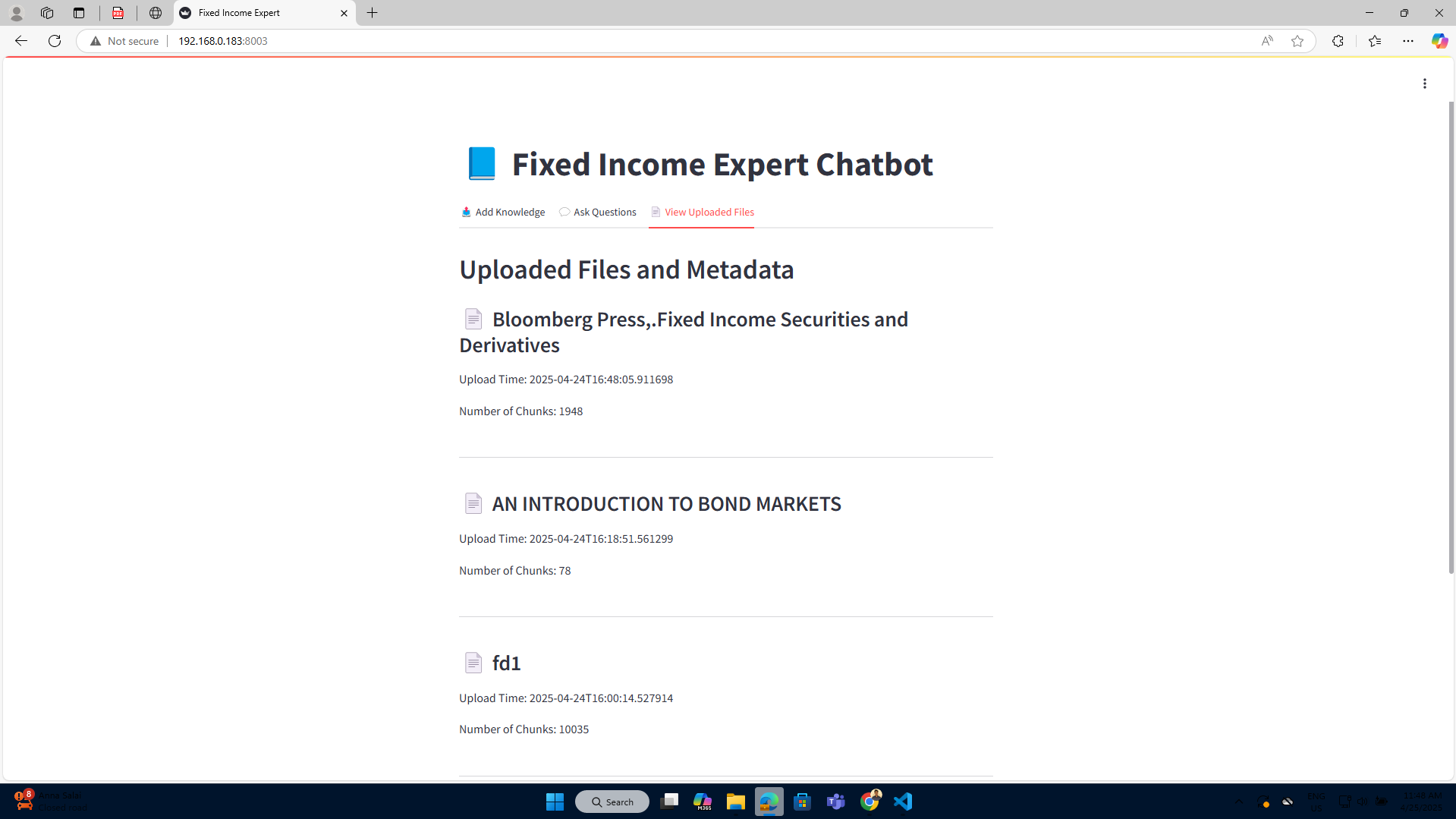

Streamlit — metadata index and embed view

Metadata index — uploaded files with chunk stats

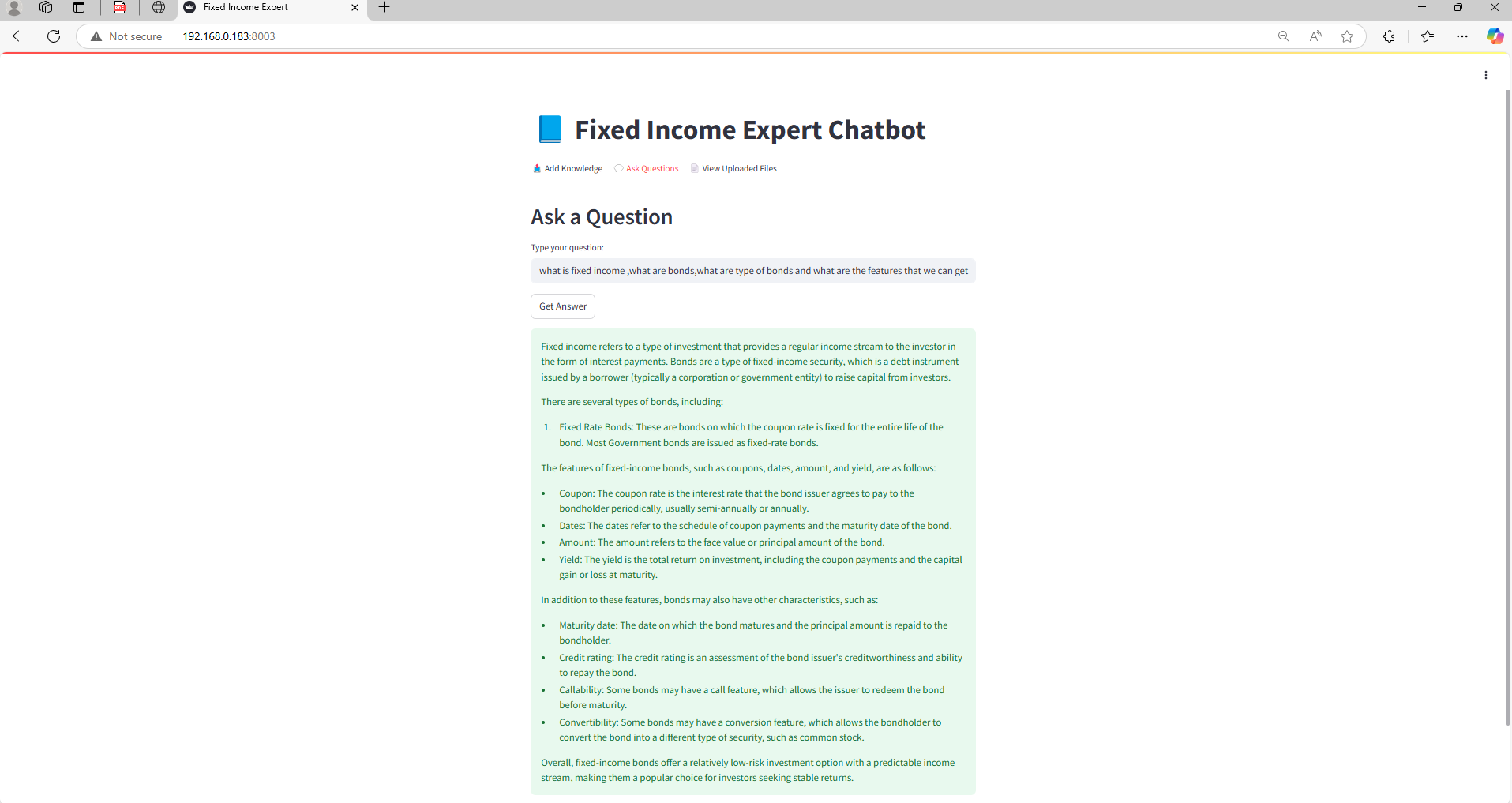

Streamlit — LLM AI response to financial query

AI response — LLaMA 3 answering a bond query grounded in PDF context

systemd service logs

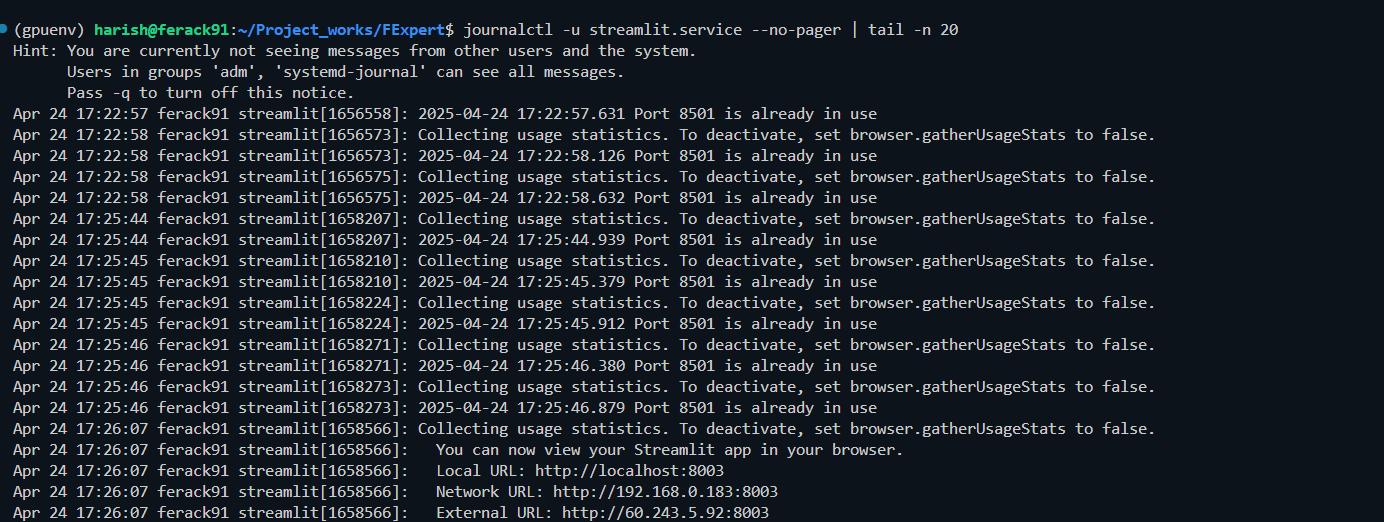

Streamlit systemd service running on server

Frontend service — Streamlit running on server via systemd

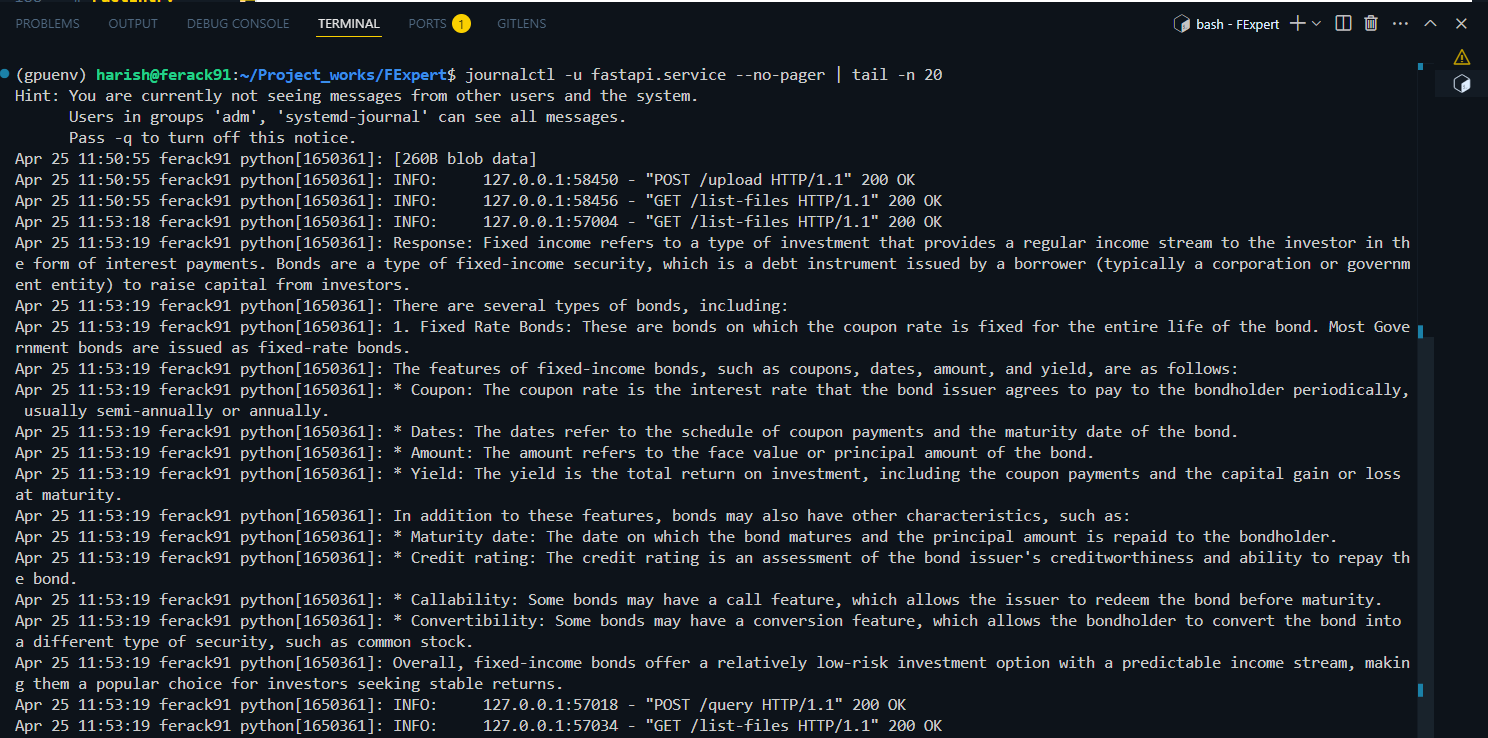

FastAPI systemd service running on server

Backend service — FastAPI uvicorn running on server via systemd

Local setup

git clone https://github.com/Harish-nika/FExpert.git
cd FExpert
python -m venv venv && source venv/bin/activate
pip install -r requirements.txt

# Add Groq API key
echo "GROQ_API_KEY=your_key_here" > .env

# Start backend
uvicorn backend:app --host 0.0.0.0 --port 8002 --reload

# Start frontend (separate terminal)
streamlit run frontend/frontend.py

Hosted as systemd services (internal server)

For persistent internal deployment, both services run as Linux systemd units that start automatically on boot and restart on failure.

FastAPI service

# /etc/systemd/system/fastapi.service
[Unit]
Description=FastAPI backend for FactEntry FEexpert
After=network.target

[Service]
User=harish
WorkingDirectory=/home/harish/Project_works/FactEntry_FEexpert/backend
ExecStart=/home/harish/Project_works/FactEntry_FEexpert/FExpENV/bin/python \
    /home/harish/Project_works/FactEntry_FEexpert/backend/backend.py
Restart=always

[Install]
WantedBy=multi-user.target

Streamlit service

# /etc/systemd/system/streamlit.service
[Unit]
Description=Streamlit frontend for FactEntry FEexpert
After=network.target

[Service]
User=harish
WorkingDirectory=/home/harish/Project_works/FactEntry_FEexpert/frontend
ExecStart=/home/harish/Project_works/FactEntry_FEexpert/FExpENV/bin/streamlit \
    run frontend.py --server.port 8501
Restart=always
Environment="PATH=/home/harish/Project_works/FactEntry_FEexpert/FExpENV/bin"

[Install]
WantedBy=multi-user.target

Manage & monitor

# Enable and start
sudo systemctl daemon-reload
sudo systemctl enable fastapi.service streamlit.service
sudo systemctl start fastapi.service streamlit.service

# Status / restart
sudo systemctl status fastapi.service streamlit.service
sudo systemctl restart fastapi.service streamlit.service

# Logs
journalctl -u streamlit.service --no-pager | tail -n 20
journalctl -u fastapi.service   --no-pager | tail -n 20

Access

FastAPI backend: http://<server-ip>:8002
Streamlit UI: http://<server-ip>:8501
