Recruiting Agent — AI-Powered ATS

What the system solves

Manual resume screening is slow, inconsistent, and weak on fraud detection for technical roles. Recruiting Agent provides an end-to-end ATS with semantic JD matching, structured verification, evidence-calibrated scoring, and an HR feedback loop — not a chatbot, but an observable multi-step agent pipeline.

Core features

Feature	Description
JD Manager	Create/update roles; paste raw JD text → AI extracts skills, seniority, must-haves
Vector search	JDs chunked and embedded with Ollama → ChromaDB semantic matching
Resume upload	PDF, DOCX, TXT, JPG/PNG with OCR for scanned documents
Verification	Structured extract (education, experience, projects) + rule-based anomaly detection
Scoring	Technical / HR / overall fit with evidence-based strengths and gaps
Suspicion + HR Qs	Fraud flags and categorized verification questions with resume excerpts
Agent Activity	Live pipeline timeline during analysis with similarity bars and skill chips
Dashboard charts	Score distribution, role averages, top candidates, verification gaps

Monorepo context

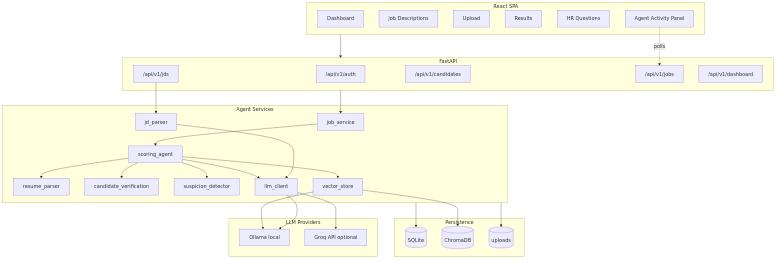

System architecture

React SPA → FastAPI → agent services → SQLite/ChromaDB/uploads → Ollama (local) + Groq (optional)

Component summary

Layer	Role
React SPA	Dashboard, JD manager, upload, results, HR questions, settings — TanStack Router + Query
FastAPI	JWT auth, async job endpoints, SPA static serving on port 8512
job_service	Background threads, step timeline, job recovery, cancellation
scoring_agent	Orchestrates parse → verify → embed → search → score → suspicion → save
vector_store	ChromaDB HNSW index — JD chunks + skills, cosine similarity
llm_client	Routes chat to Groq when key set, else Ollama; embeddings always local
SQLite	Candidates, JDs, analysis results, processing jobs, HR questions

Data model

• job_descriptions + jd_versions — role definitions with versioned content
• candidates — raw text, structured/verification JSON, parse method
• analysis_results — per candidate × JD scores, suspicion, similarity
• hr_questions — categorized questions with resume excerpts and HR answers
• processing_jobs — step timeline + viz_json for live Agent Activity UI
• user_settings — per-user Groq API key (optional)

LLM routing

Middleware resolves Groq API key per request (header, saved settings, or local file). Chat inference uses Groq when a key is available, otherwise Ollama. Embeddings always run on local Ollama (nomic-embed-text) — even when Groq accelerates scoring.

Resume analysis pipeline

Upload → parse → normalize → verify → embed → search → score → suspicion → save → HR questions

Pipeline steps

Step	Label	What happens
receive	Receive file	Store upload, create processing job record
parse	Parse resume	Extract text from PDF/DOCX/image; OCR for low-text scans
normalize	Structure text	LLM normalization when unstructured
verify	Verify education & experience	Structured LLM extract + rule-based anomaly checks
embed	Embed vectors	Ollama embeddings for resume text
search	Search matching roles	ChromaDB top-K JD similarity (default K=3)
score	LLM role scoring	Technical / HR / overall fit with evidence
suspicion	Suspicion analysis	0–100 authenticity score + HR questions
save	Save results	Persist candidate, scores, questions to SQLite

Other async job types

Job type	Steps	Trigger
jd_parse	receive → llm → done	POST /api/v1/jds/parse-async
jd_index	chunk → embed → index → done	POST /api/v1/jds/{id}/index-async
hr_reassess	collect → llm_reassess → update → done	POST /api/v1/candidates/{id}/reassess-suspicion

HR verification loop

Suspicion flags → categorized HR questions → recruiter answers → LLM reassessment → updated fit summary

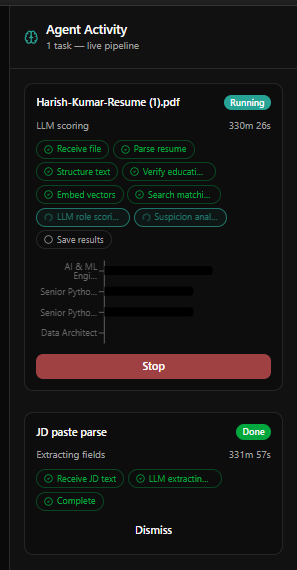

Live Agent Activity

Frontend polls GET /api/v1/jobs every 1.5s via TanStack Query — step timeline updates with similarity bars and skill chips from viz_snapshots

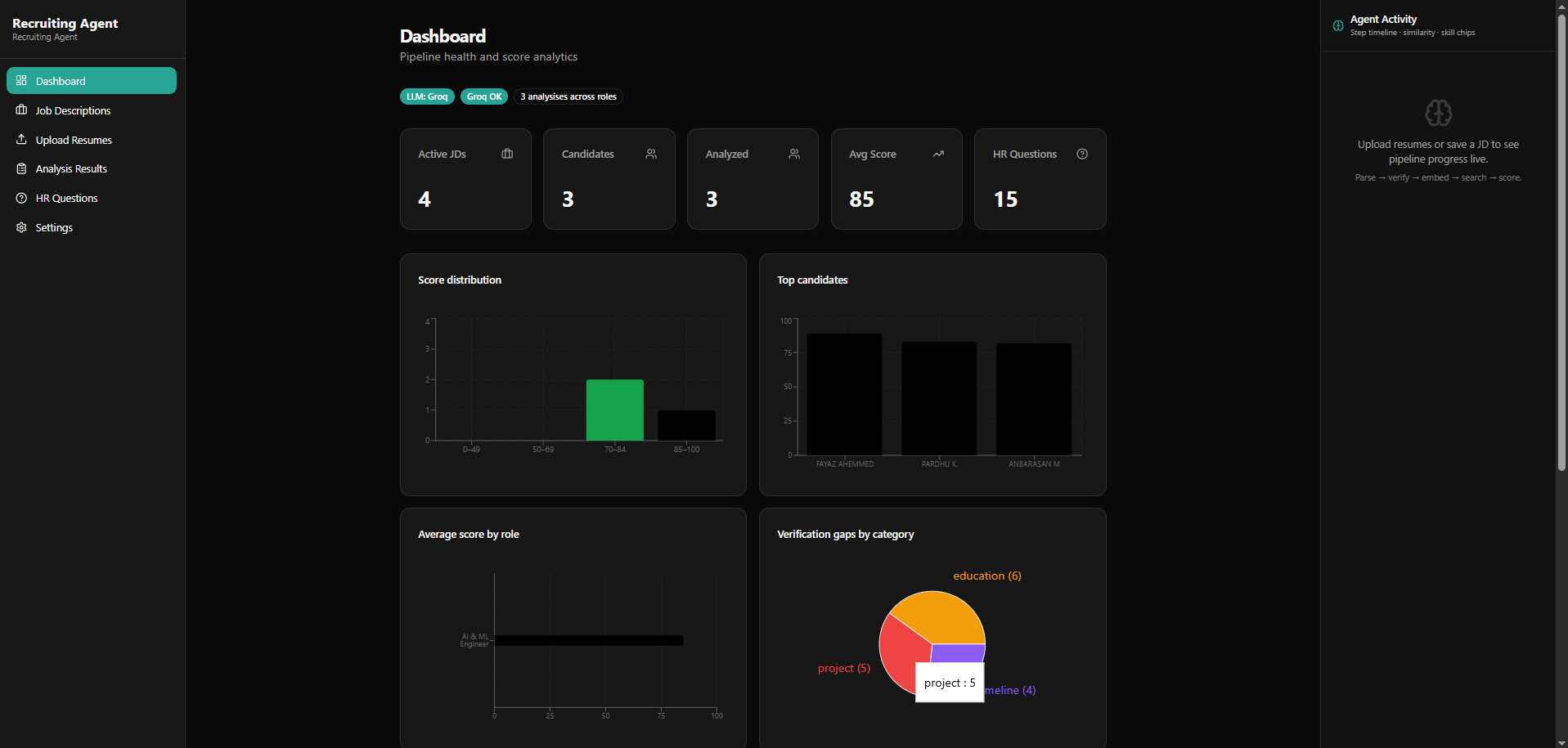

Dashboard

Pipeline health, score distribution, and top candidates at a glance

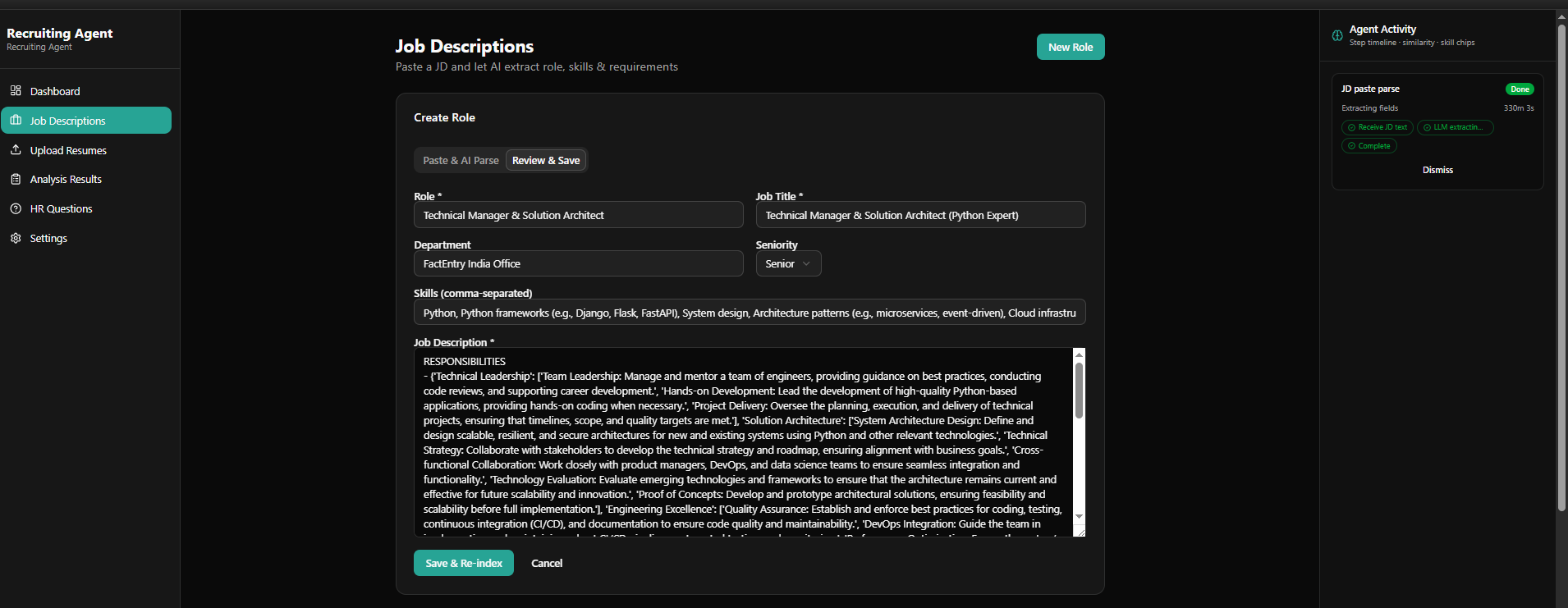

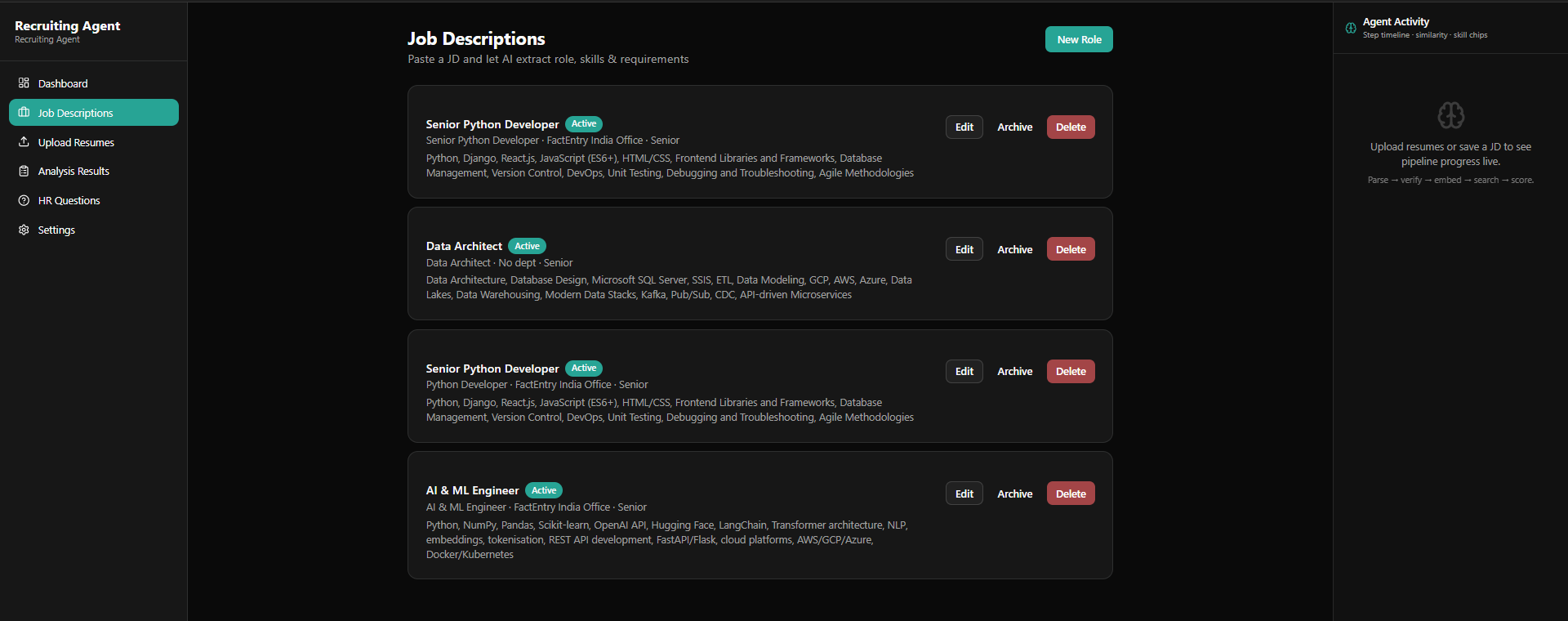

Job descriptions

Create roles, paste JD text, and index skills for vector search

LLM extracts structured fields — skills, seniority, must-haves — from raw JD text

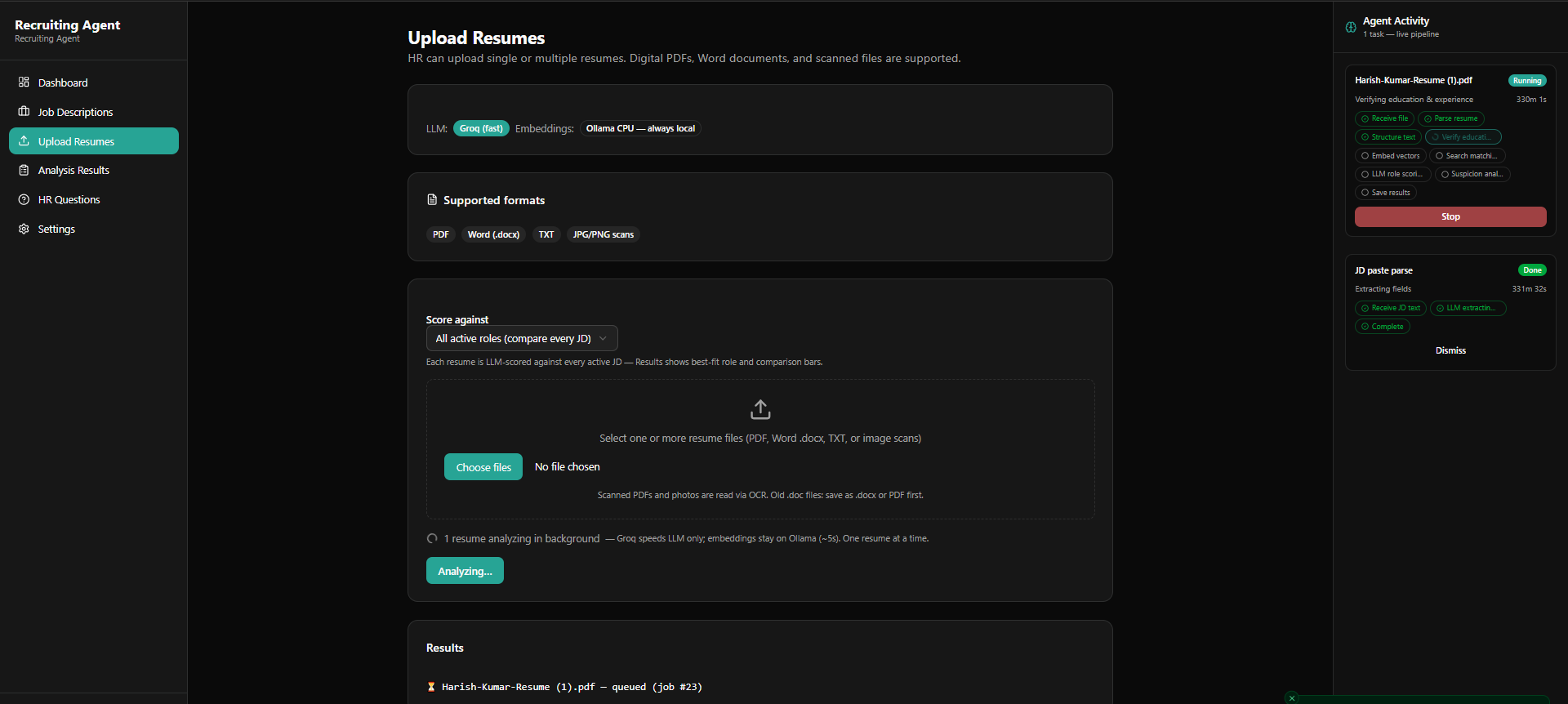

Resume upload

Bulk upload with optional target role; supports PDF, DOCX, scans, and images

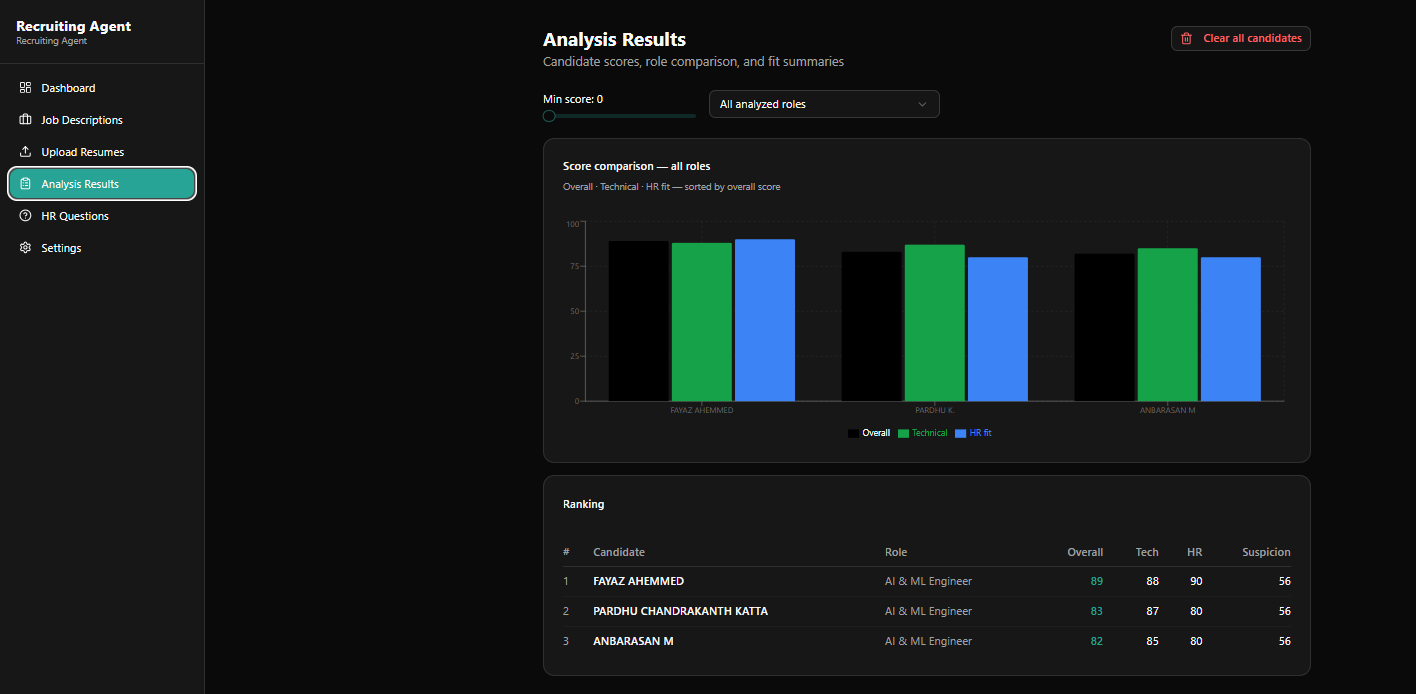

Analysis results

Per-candidate scores, role suitability comparison, verification gaps, and ranking

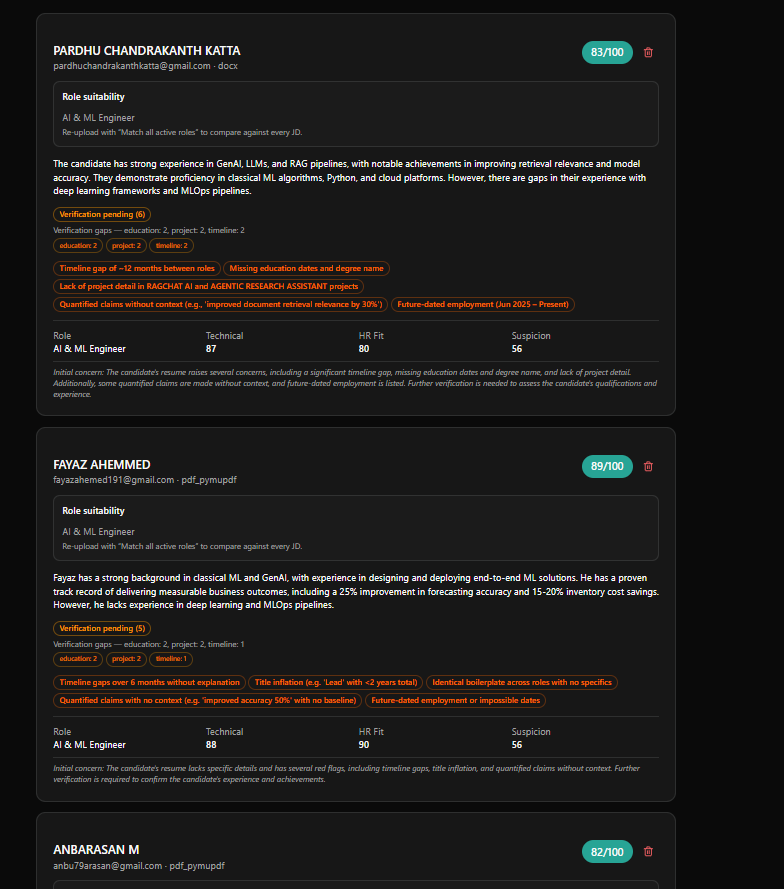

Detailed verification gaps and suspicion evidence tied to resume excerpts

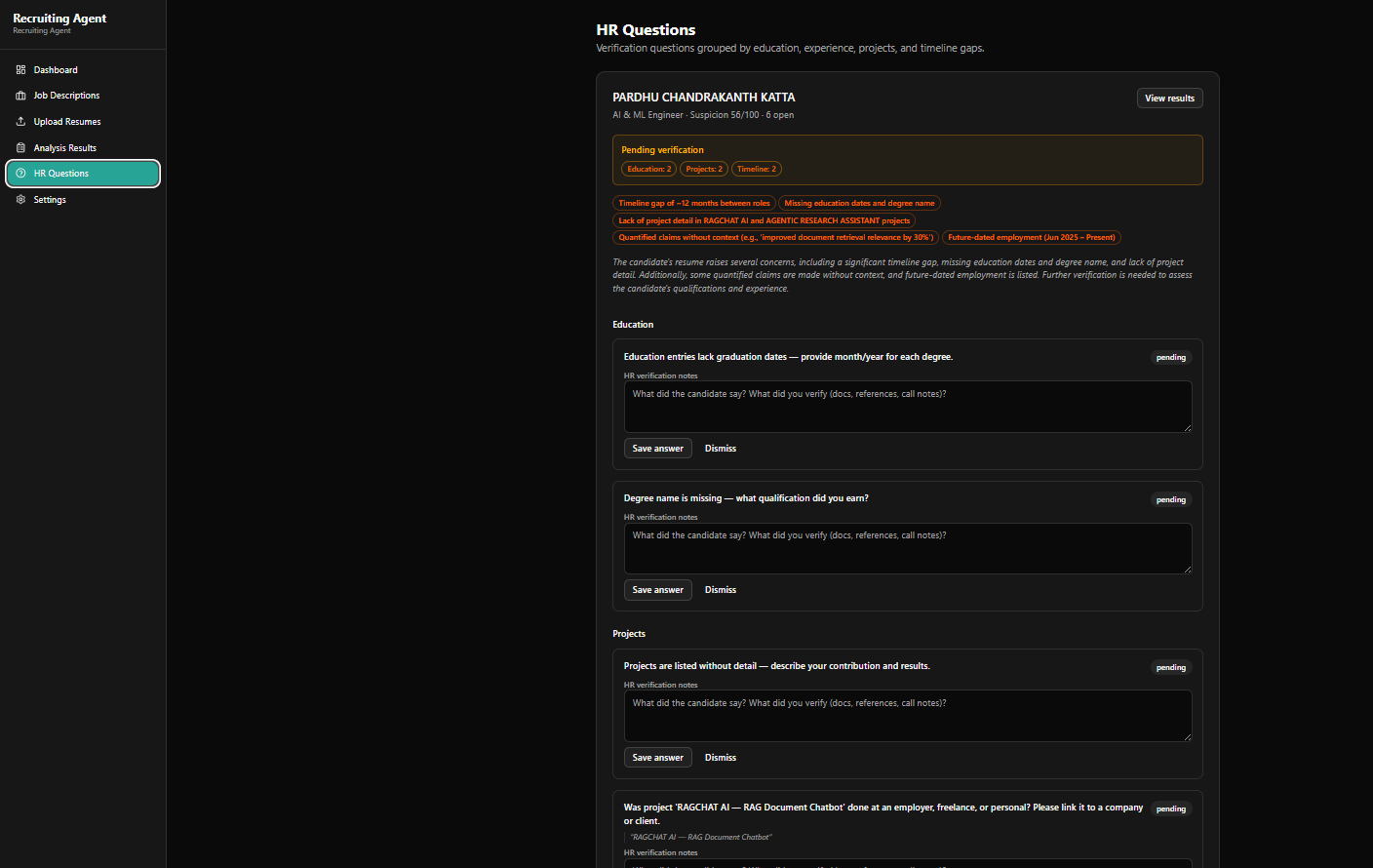

HR questions

Categorized verification questions with resume excerpts for recruiter follow-up

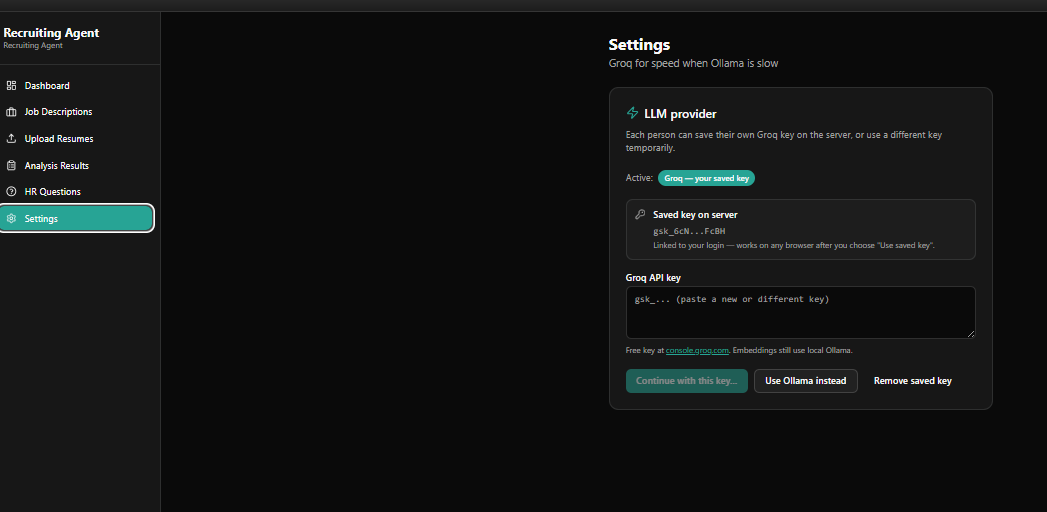

Settings

Optional Groq API key for faster LLM scoring — embeddings stay on local Ollama

Key services

Service	Responsibility
scoring_agent.py	End-to-end resume analysis orchestration and result persistence
resume_parser.py	Multi-format parsing, OCR for scans, LLM normalization
candidate_verification.py	Structured extract + timeline gap / missing section rules
suspicion_detector.py	LLM authenticity scoring with evidence-tied HR questions
suspicion_reassessment.py	Re-evaluate suspicion after HR answers
vector_store.py	ChromaDB chunking, embedding, and top-K JD search
jd_parser.py	LLM extraction of skills and requirements from raw JD text
llm_client.py	Groq/Ollama routing; local embeddings via Ollama
viz_snapshots.py	Step visualization data for Agent Activity panel

API endpoints

Endpoint	Method	Description
/api/v1/auth/login	POST	JWT login (bcrypt password)
/api/v1/jds	GET/POST	List and create job descriptions
/api/v1/jds/parse-async	POST	Async LLM JD field extraction
/api/v1/jds/{id}/index-async	POST	Chunk, embed, and index JD in ChromaDB
/api/v1/candidates/upload-async	POST	Upload resume → returns job_id for polling
/api/v1/jobs	GET	Poll job status and step timeline
/api/v1/candidates/{id}/reassess-suspicion	POST	HR answer loop reassessment
/api/v1/dashboard/stats	GET	Analytics aggregates for charts
/api/v1/settings/groq-key	GET/PUT	Per-user Groq API key management

Concurrency & resilience

• Resume jobs serialized via threading.Semaphore(1) — one resume at a time
• Background daemon threads for all async jobs
• Stale job recovery on server restart (recover_stale_jobs)
• Job cancellation support
• SQLite WAL mode + commit retry on lock
• Email-based deduplication — re-upload replaces prior analyses

Scoring prompt design

Scoring prompts enforce full 0–100 range, role-specific weighting (e.g. GenAI/ML roles), and penalize keyword stuffing without project proof. Suspicion prompts require evidence-tied HR questions with calibrated 0–100 authenticity scores.
